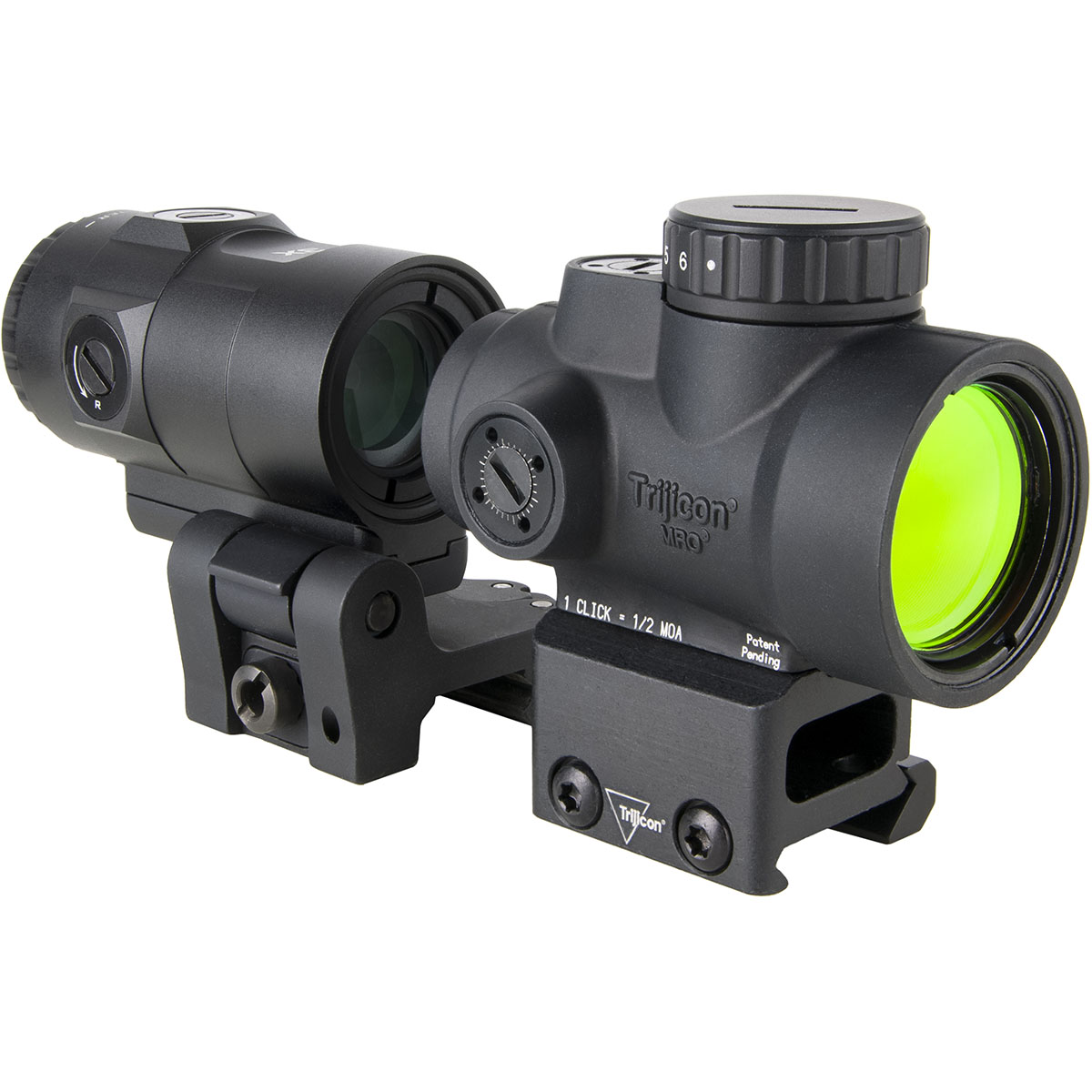

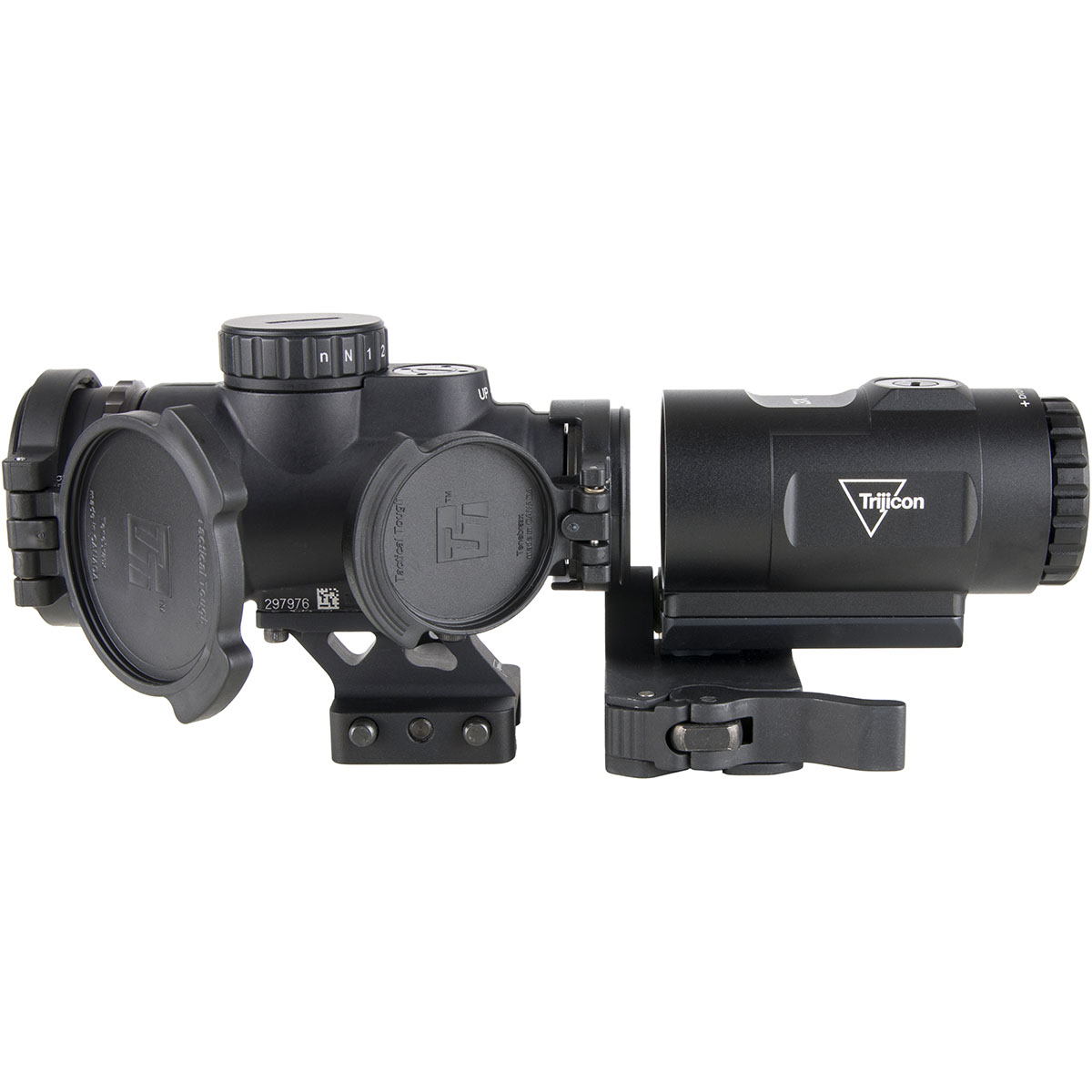

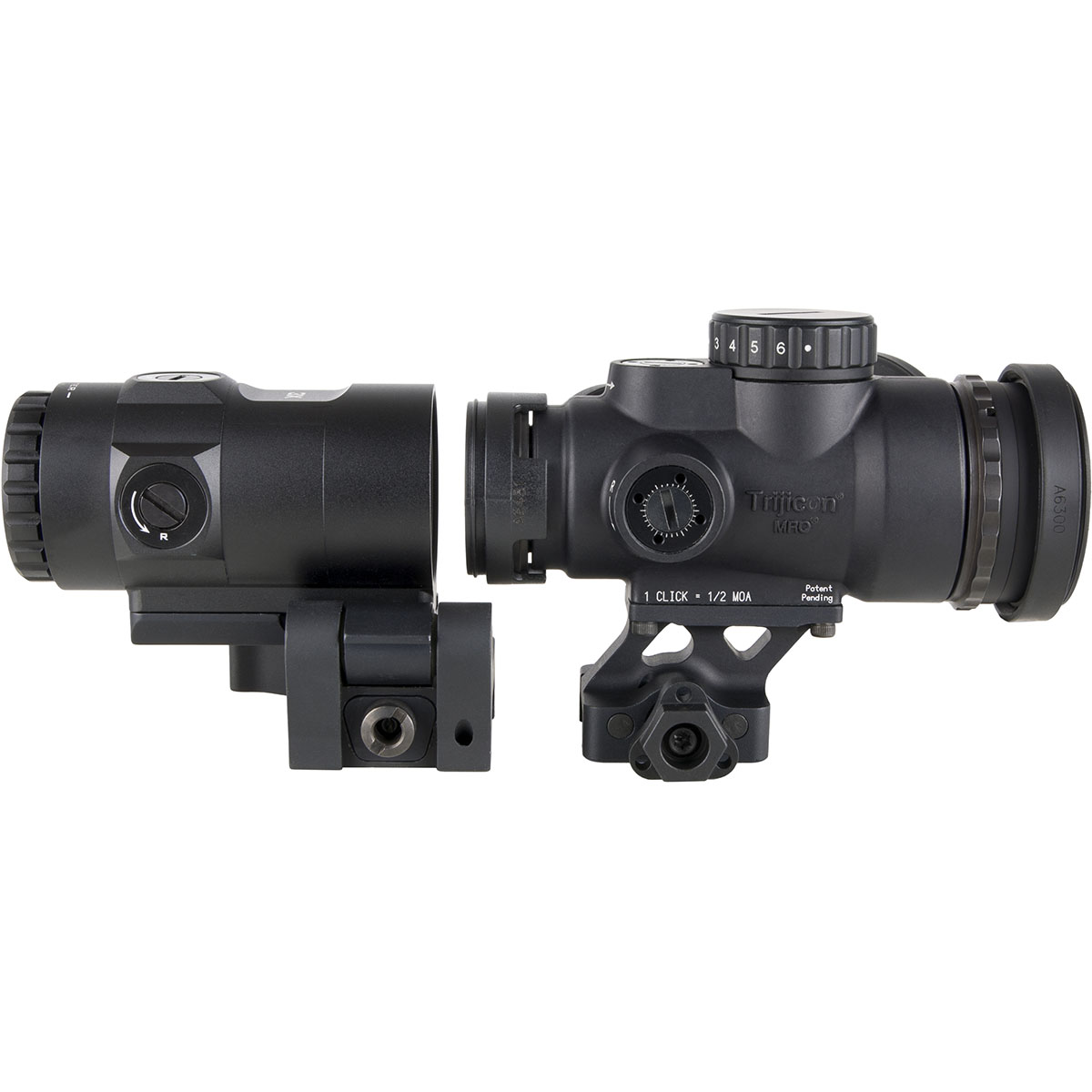

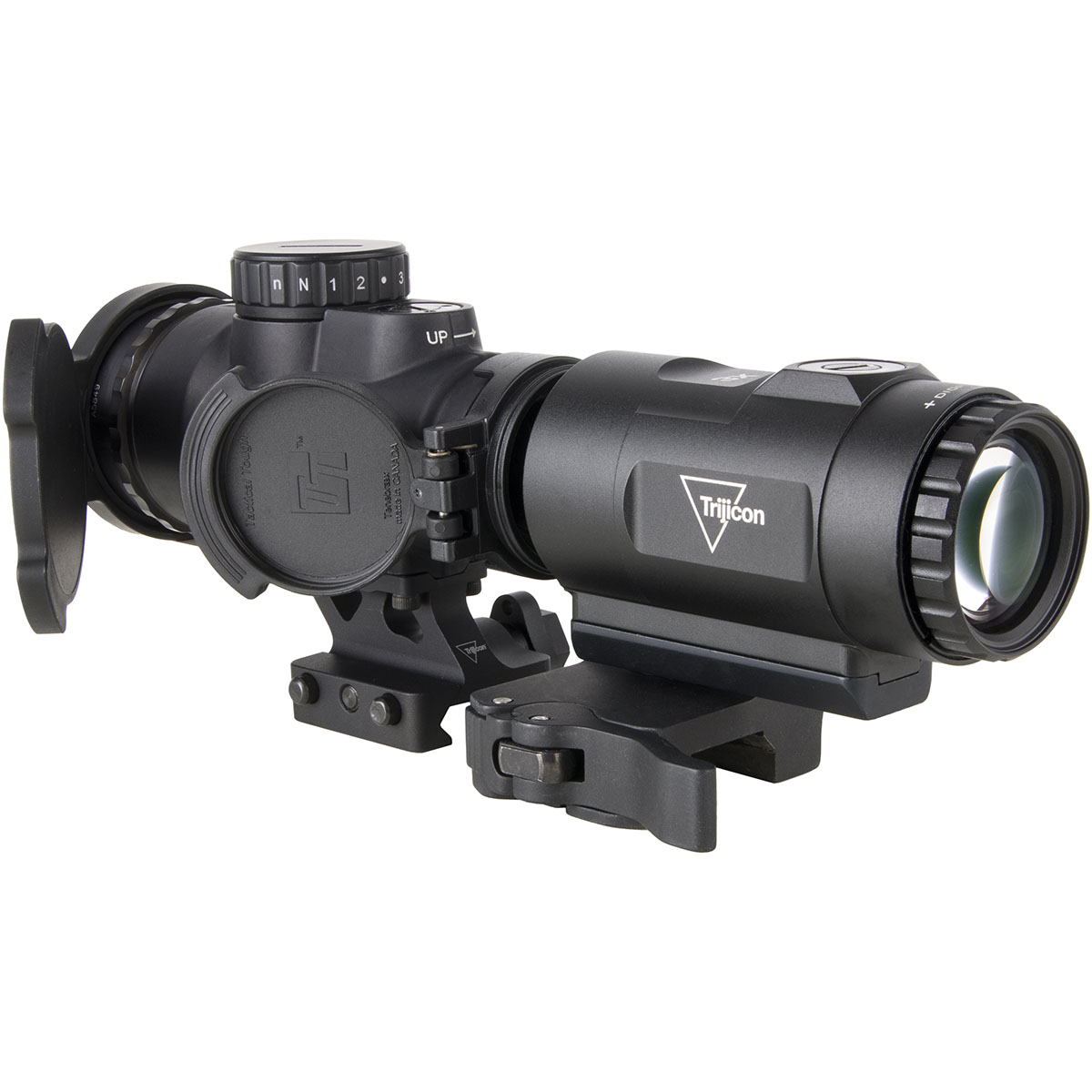

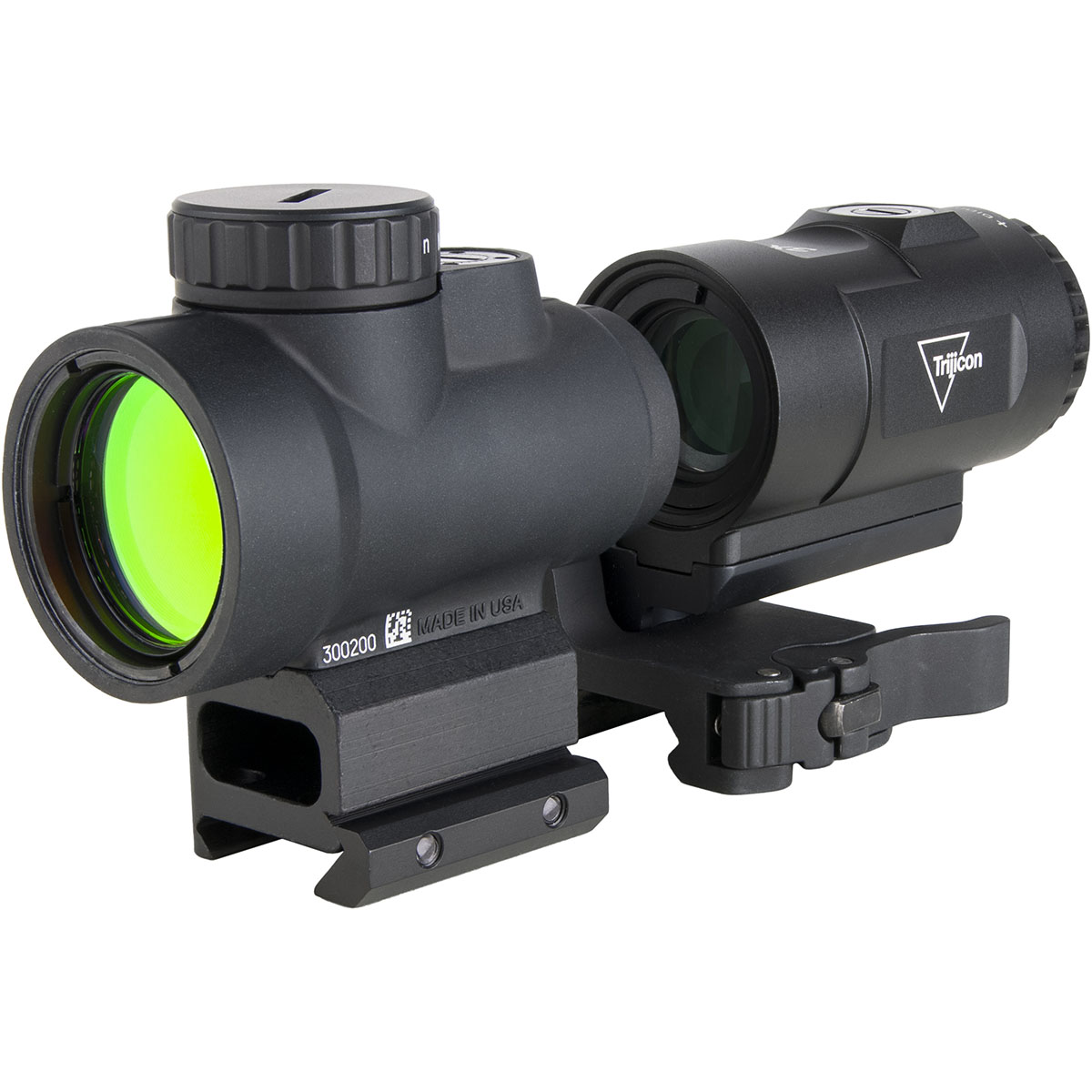

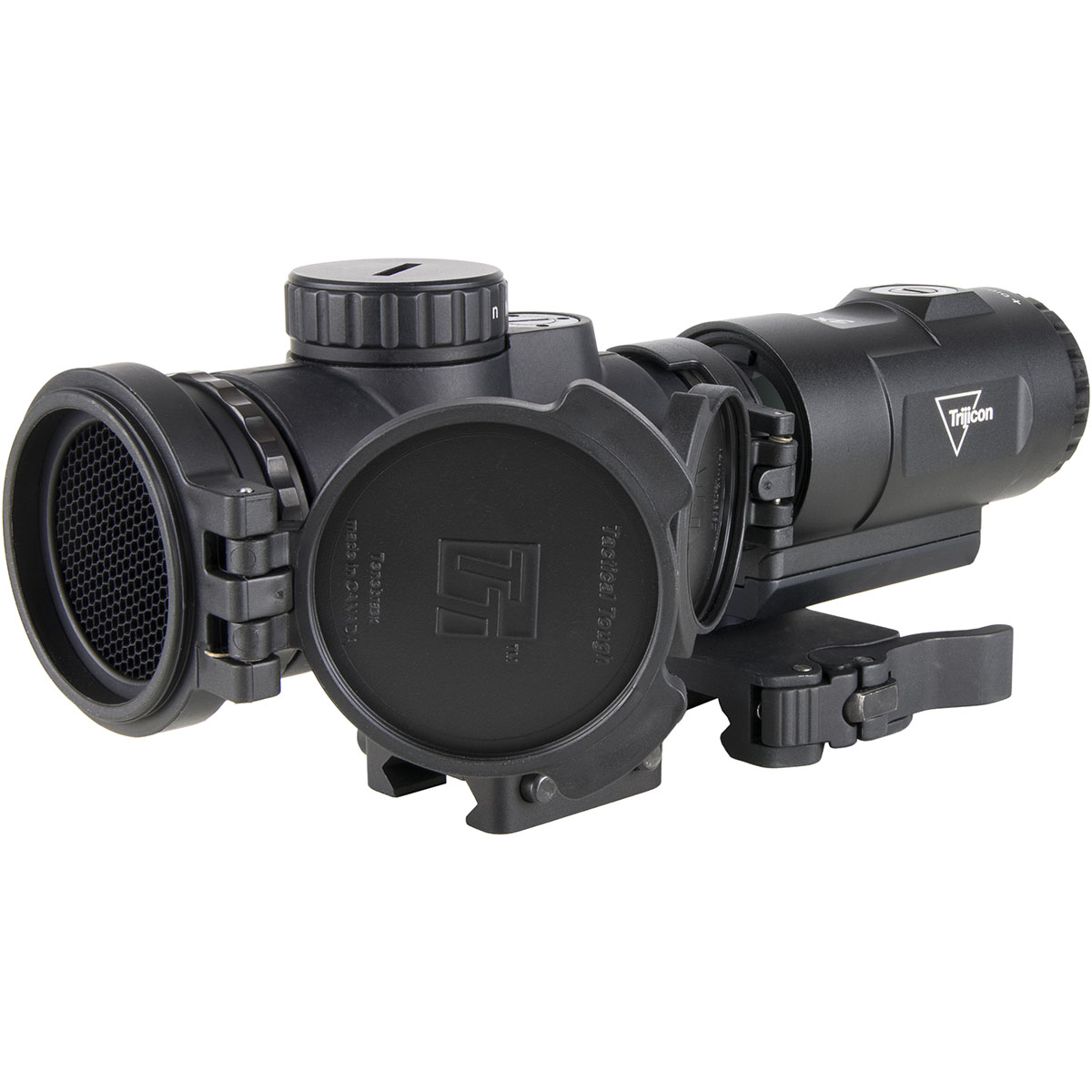

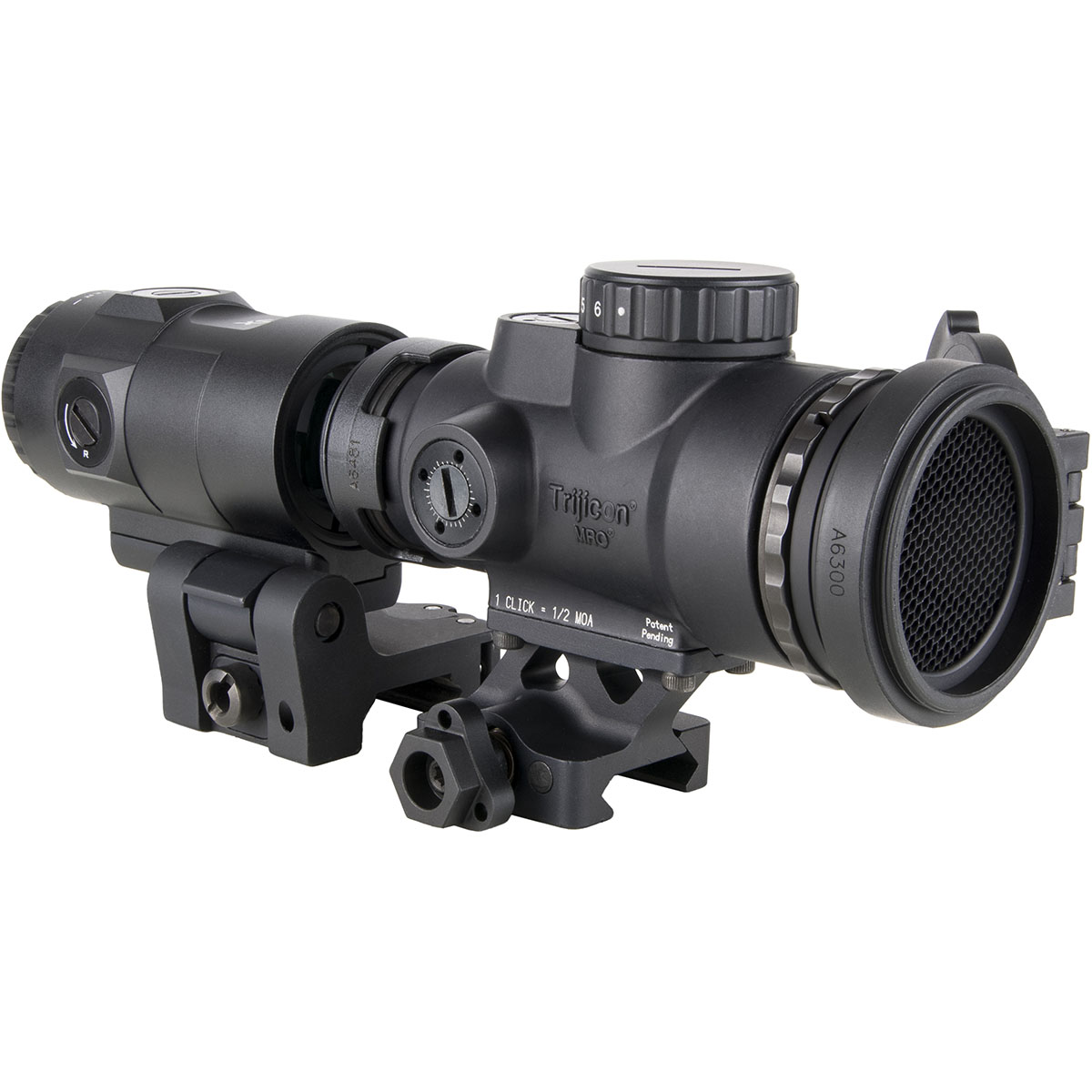

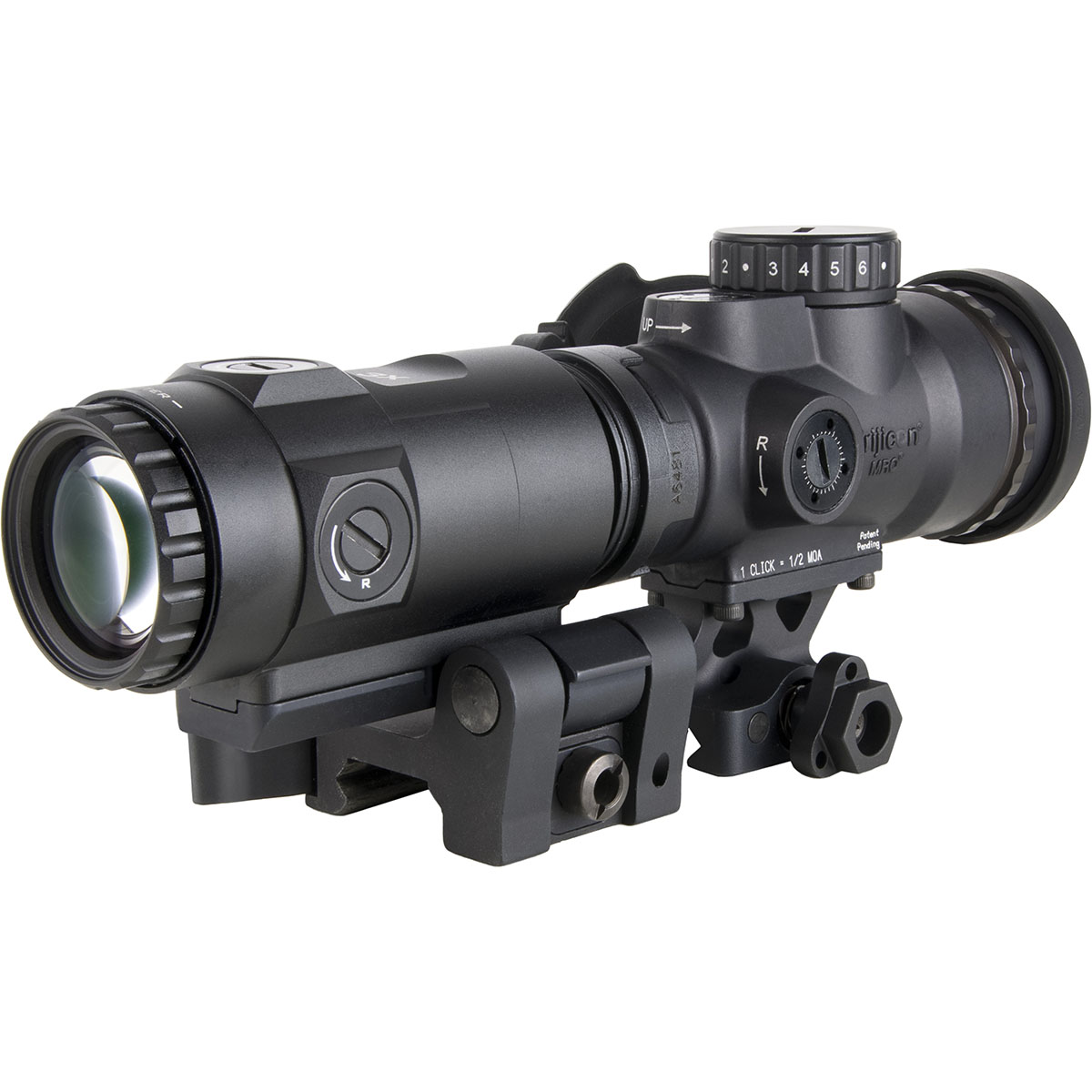

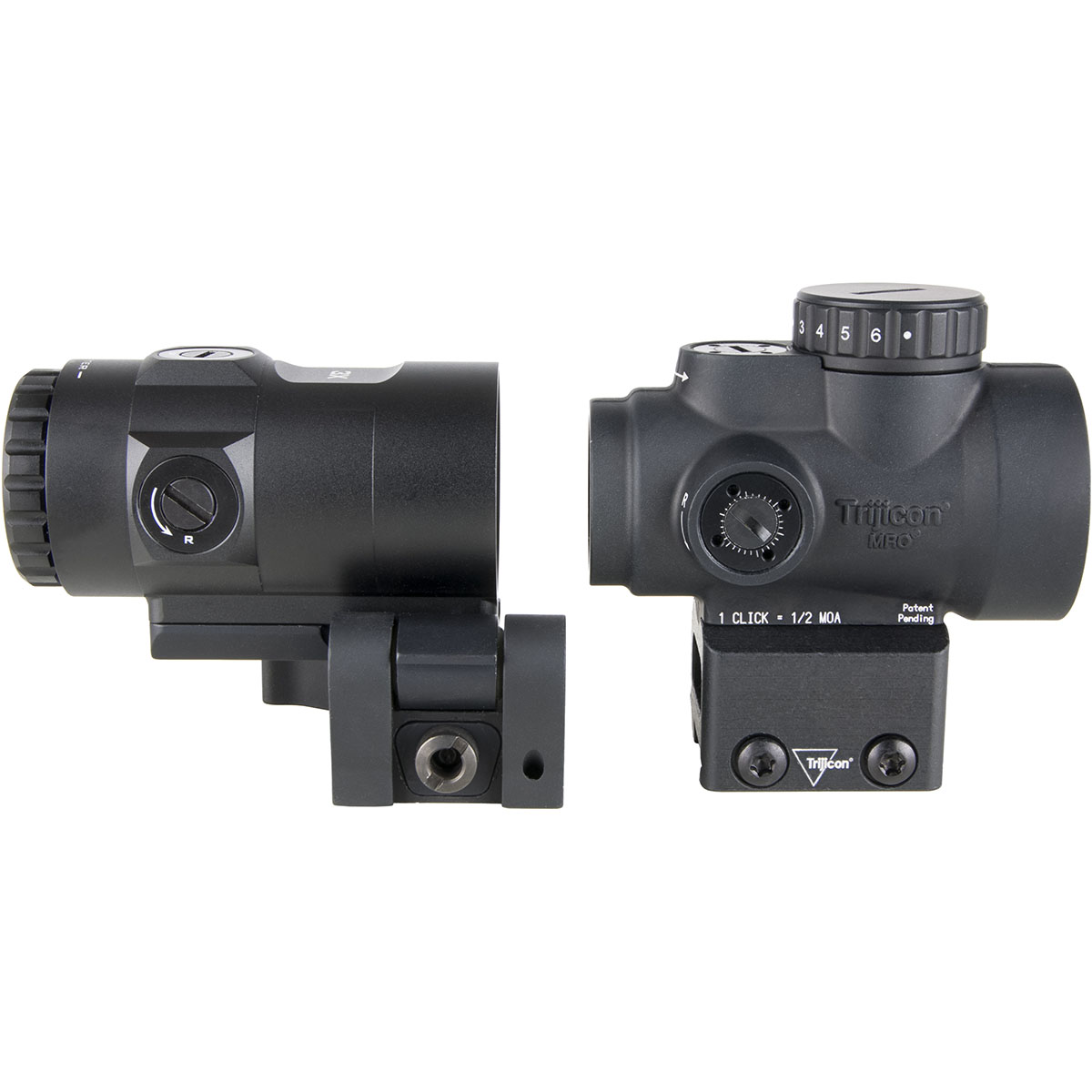

MRO SD 1X25 2 MOA RED DOT SIGHT W/ 3X MAGNIFIER
The Trijicon MRO (Miniature Rifle Optic) SD is a sealed, miniature reflex sight intended for use on rifles, carbines, and shotguns to provide fast target acquisition. The MRO SD maintains the same durability and footprint of the original MRO with an enhanced optical design for pairing with magnifiers and night vision devices.
The MRO SD features a reengineered objective lens with advanced lens coatings that delivers a refined, crisp 2.0 MOA center dot, optimized for seamless use with the optional MRO 3x Magnifier. The MRO SD is also equipped with upgraded windage and elevation adjusters for improved zero retention under direct impact and heavy recoil, ambidextrous brightness controls, and a fully sealed, waterproof, hard-anodized forged 7075-T6 housing.

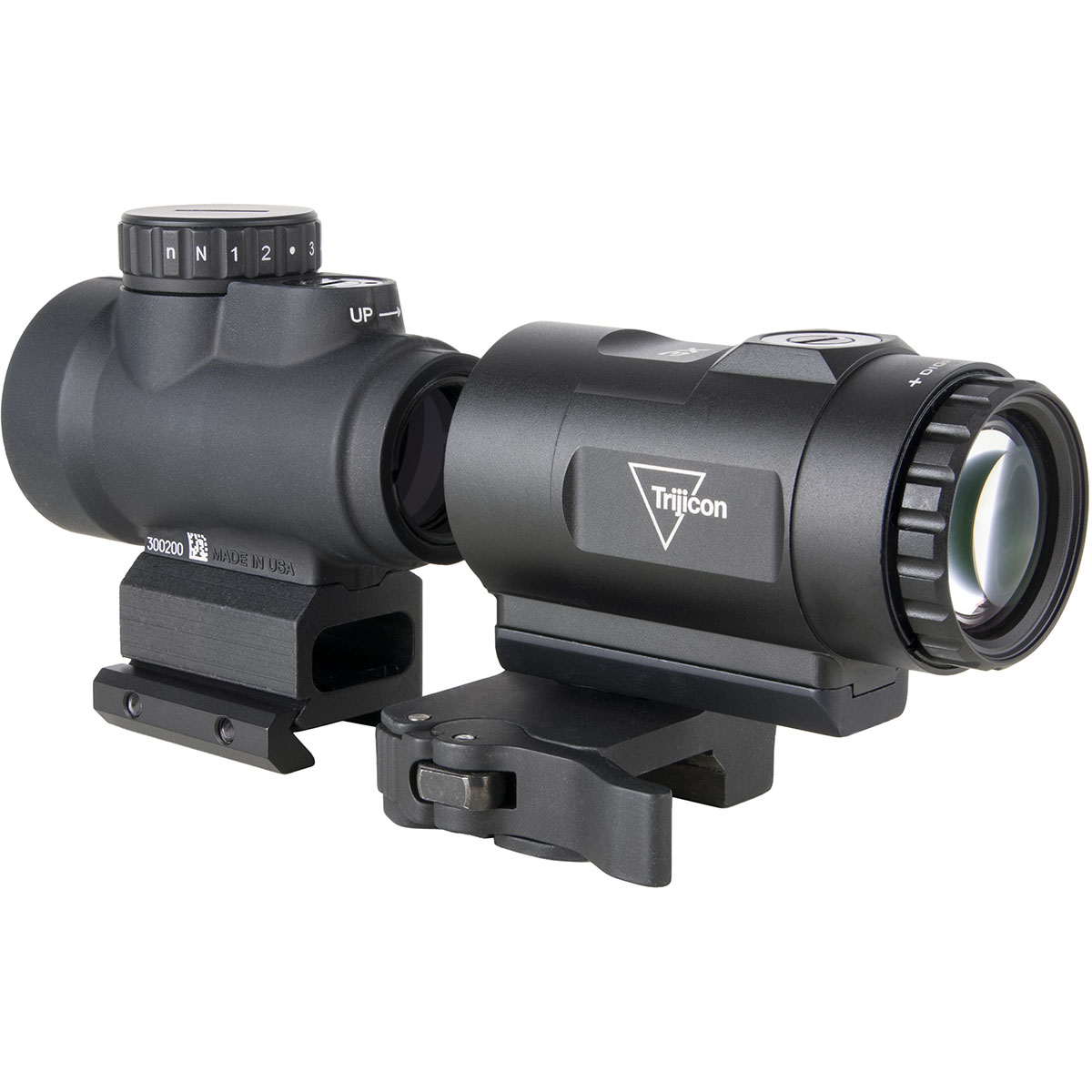

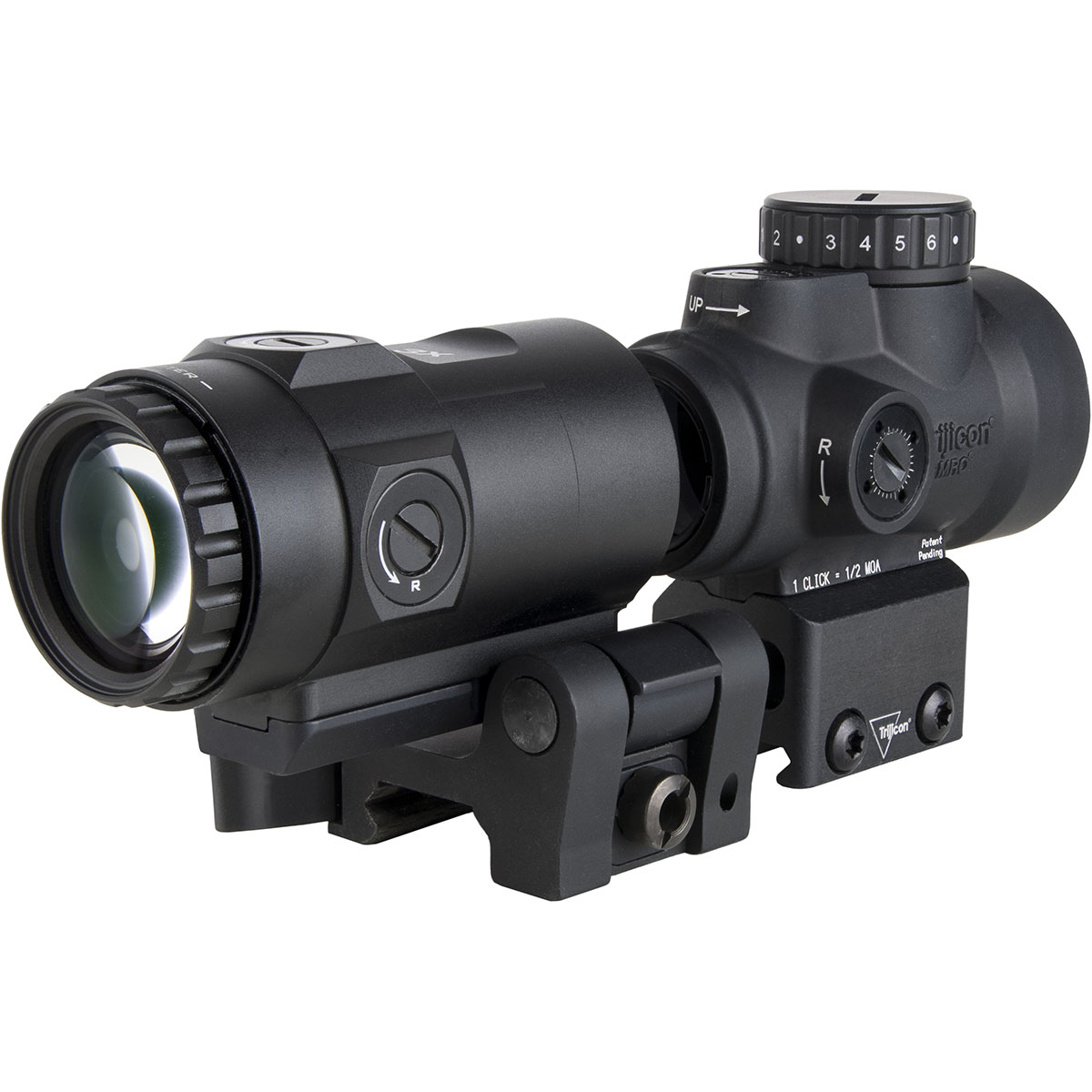

The Trijicon Miniature Rifle Optic (MRO®) SD Magnifier is a 3-power reflex optic magnifier specifically designed to magnify the target and target seen through the MRO SD red dot optic. By magnifying the target, the shooter is able to use the crisp dot in the MRO SD to quickly and accurately engage targets at extended distances. The MRO HD Magnifier is short and compact which saves weight and rail space. The design features easy-to-set flush, toolless adjusters that make centering the reticle in the field of view easy. The adjustable diopter allows the user to tune the optical performance to their eyes.

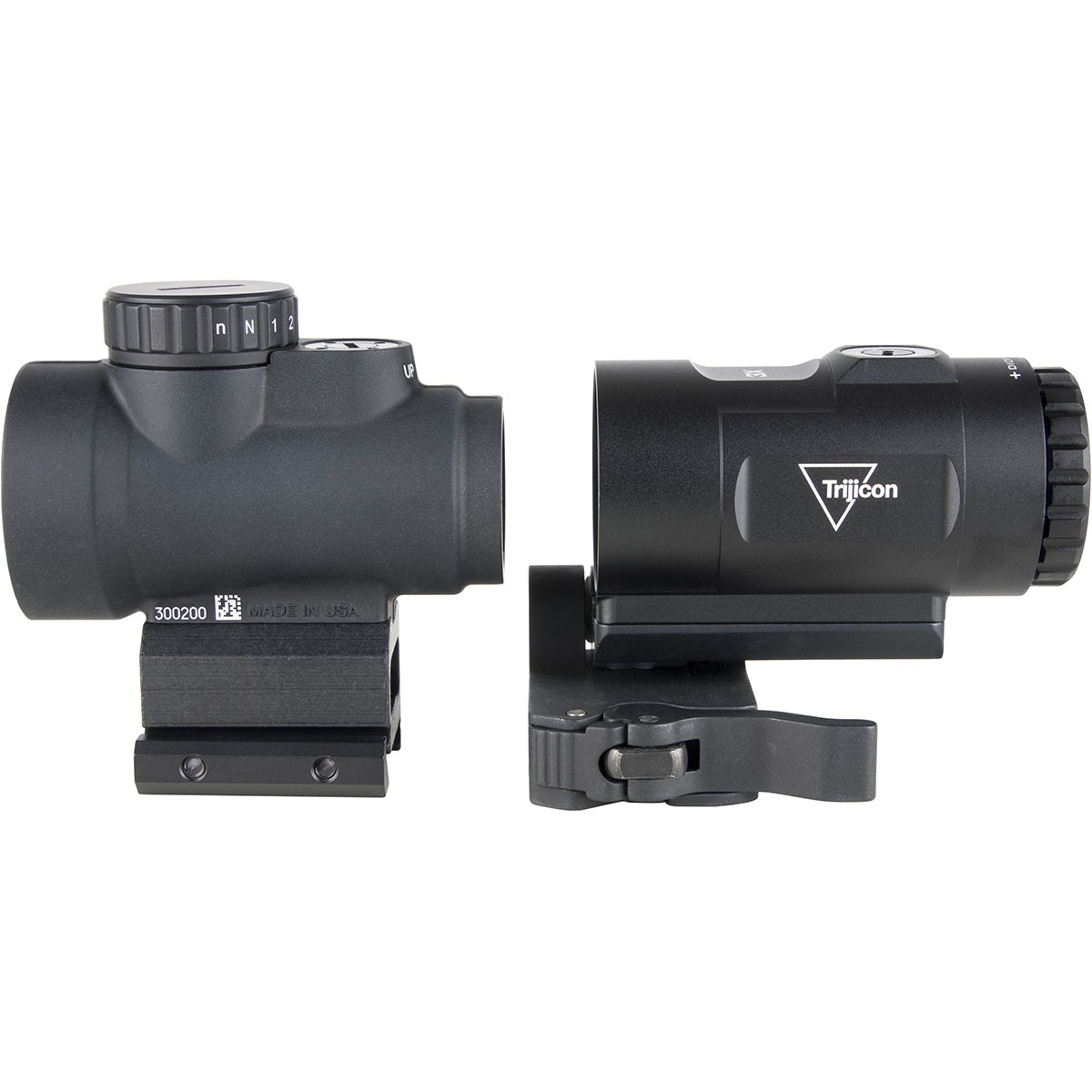

The 3x magnifier also includes a multi position, military-grade flip-to-side quick release levered mount which makes mounting and unmounting the optic from the host platform quick and easy. This mount is also designed to flip into place over the top of back up iron sights commonly used on modern sporting rifles. Each magnifier includes a riser plate and additional fasteners to allow the optic to align with either 1/3rd or Full Co-Witness MRO SD mounts.
FEATURES:
- FASTER TARGET ACQUISITION: Larger viewing area allows for faster acquisition and engagement with reduced “tube effect.”
- AMBIDEXTROUS BRIGHTNESS CONTROL: Brightness dial is equally usable by left- or right-handed operators without having to remove hand from fire control.
- EASILY ADJUSTABLE BRIGHTNESS SETTINGS: MRO models feature 8 brightness settings, including 2-night vision-compatible settings.
- BUILT TO HANDLE THE WORST: Designed with forged 7075 housing, fully sealed construction and dry nitrogen to protect against the tough elements.
- RECESSED ADJUSTERS: Capless design (utilizing sub-flush adjusters) eliminates lost caps, snag hazards and ensures against inadvertent adjustment or loss of zero.
- SUPERIOR QUALITY GLASS LENSES: Multi-coated lenses provide superior clarity and light-gathering capabilities with zero distortion for a crisp dot reticle.
- LIMITED LIFETIME WARRANTY: Electronics are warrantied for 5 years from date of original manufacture.
- ENHANCED OPTICAL PERFORMANCE: Re-engineered objective lens allows for enhanced optical performance and magnifier compatibility.
- IMPROVED WINDAGE AND ELEVATION: Designed to maintain stricter zero retention requirements under drop and recoil.
SPECIFICATIONS:
- Length x Width x Height: 2.9 in x 1.7 in x 2.1 in: (73.66mm x 43.18mm x 53.34mm)
- Weight: 4.8 oz. (136.08g)
- Magnification: 1x
- Objective Size: 25mm

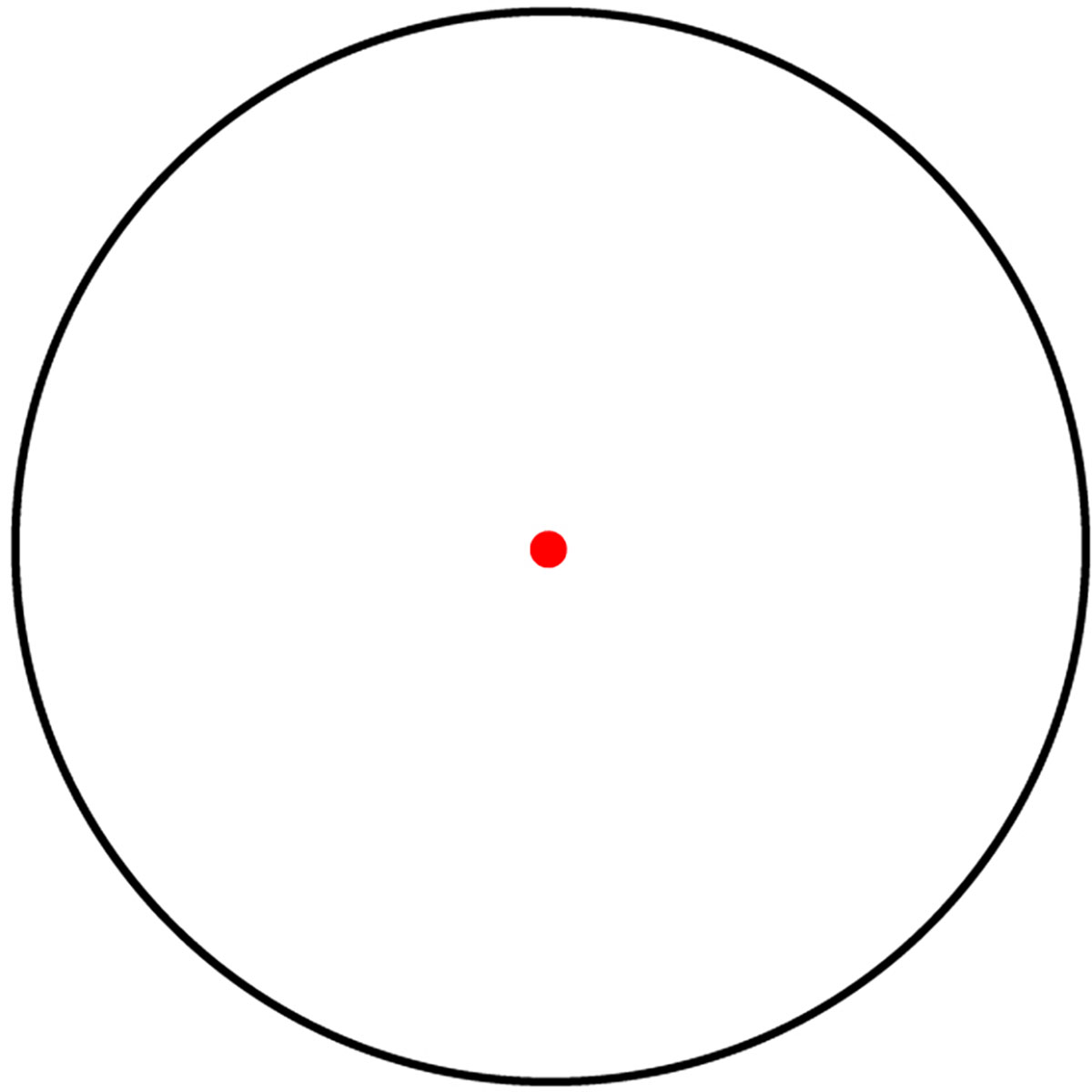

- Reticle Pattern: 2.0 MOA Dot
- Day Reticle Color: Red
- Night Reticle Color: Red
- Illumination Source: LED
- Illumination Settings: 8
- Power Source: 1 CR2032 Lithium Battery
- Battery Life: 3 years of continuous use at day setting "3" (setting 5 of 8) at 70°F (21°C)
- Adjustment: 1/2 MOA Per Click
- Adjustment Range: 70 MOA Total Travel
- Eye Relief: Infinite in.
- Mount: Full Co-Witness Mount
- Housing Material: 7075-T6 forged aluminum
- Finish: Matte Black
- Submersion Depth: 100 ft. (30m)
