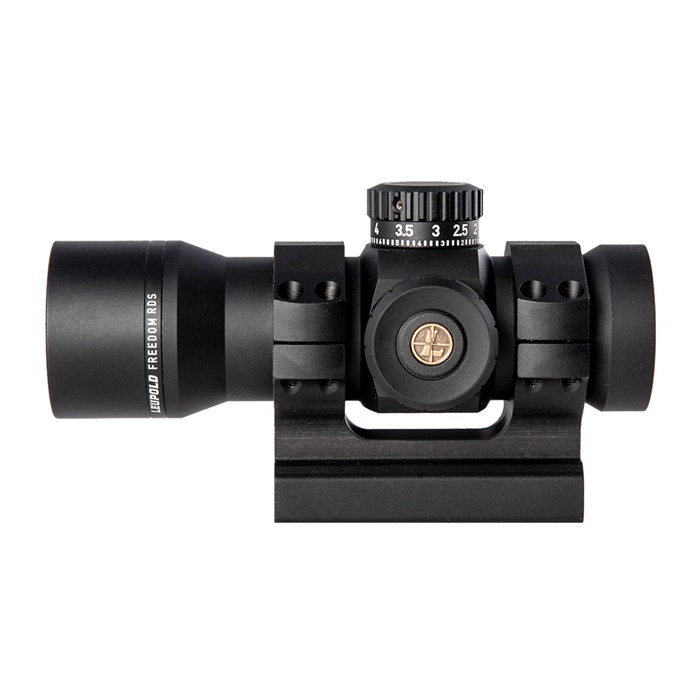

FREEDOM RDS BDC RED DOT SIGHT WITH MOUNT
All red dots are not created equal. The Freedom® RDS® (red dot sight) changes the game when it comes to consistency and durability in a red dot sight. This BDC model comes with a pre-calibrated dial for 5.56/.223 55gr rounds that lets you accurately adjust the dot out to 400+ yards.
Leupold has took our 70+ years of optics knowledge and created a red dot that's built Leupold® tough, performs in extreme conditions, and won't break the bank. This true 1x sight has everything you need in a red dot and nothing you don't. And like all Leupold riflescopes, it's designed, machined, and assembled in the USA.
FREATURES:
PROFESSIONAL-GRADE RED DOT OPTICAL SYSTEM
Leupold’s Professional-Grade Red Dot Optical System offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions, industry-leading glare reduction for a clear image in harsh, direct light, and the resolution and clarity that professional guides and shooters demand in the field.
CUSTOM BDC DIAL COMPATIBLE
Leupold's Custom Dial System® (CDS®) gives you the ability to customize your turret (adjustment dial) to your exact ballistics and environmental conditions. Once your new custom dial is installed, simply range the target, turn the dial to that number, and aim dead on.
ZERO STOP
The ZeroStop system creates a backstop when returning the dial back to zero, so you don't accidently turn the dial a full revolution in the wrong direction.
ILLUMINATED
This scope comes with an illuminated reticle, which can help you get on target faster in low-light situations.
MOTION SENSOR TECHNOLOGY (MST)
Motion Sensor Technology (MST™) extends battery life by automatically deactivating illuminated reticles after five minutes of inactivity and then reactivates instantly as soon as movement is detected.
WATERPROOF, FOGPROOF, & SHOCKPROOF
Leupold pioneered modern waterproof and fogproof technology using advanced internal gasses and sealing methods that withstand extreme temperatures, elevation changes, and shocks, so the internals of the optics stay moisture free and crystal clear for life.
INCLUDED IN BOX:
- Freedom RDS, 1.0 MOA Dot
- 3V Lithium battery (CR 2032)
- Operating instructions
- T15/T27 Torx Key
- .050 Hex Key (BDC Model)
SPECIFICATIONS:
- Battery Type: CR2032
- Daylight Bright Illumination: Yes
- Custom Dial System (CDS): No
- Elevation Adjustment Type: BDC
- Electronic Reticle Level: No
- Guard-ion Lens Coating: No
- Locking Dial: No
- Nightvision Compatible Illumination: No
- Revolution Indicator: No
- Reticle: 1 MOA Dot
- Rezero Type: Set Screw
- Reticle Type: Illuminated
- Adjustable Objective: No
- Side Focus: No
- Switch Type: Push Button
- Windage Adjustment Type: Finger Click
- Weight (oz): 6.9
- Elevation Adjustment Value per Click: 1/4MOA
- Elevation Adjustment Range (MOA): 80
- Elevation Adjustment Range (MIL): 23
- Elevation Adjustment Range (cm @ 100m): 233
- Elevation Adjustment Per Revolution: 15 MOA
- Elevation Dial Travel Limit: 14MOA
- Windage Adjustment Value per Click: 1/4MOA
- Windage Adjustment Range (MOA): 80
- Windage Adjustment Range (MIL): 23
- Windage Adjustment Range (cm @ 100m): 233
- Windage Adjustment Per Revolution: 15 MOA
- Magnification Min: 1
- Objective Lens Diameter (mm): 34
- Eye Relief Low Mag (in): Unlimited
- Battery Life (hr), Low Intensity: 1600
- Battery Life (hr), Medium Intensity: 1000
- Battery Life (hr), High Intensity: 300
- Number of Illum Settings: 8
Includes AR-specific mount
- Battery life at brightness 4 of 8: 1000 hours minimum
- RDS - no mount with battery = 7.2 ounces
- RDS - with mount, battery, and BDC = 13.1 ounces
