ARISAKA DEFENSESide Scout Light Mount for M-Lok Handguard, FDE

Side Scout Light Mount for M-Lok Handguard, FDE
Brownells #
430104555
MFR #
SSM-M-FDE
UPC
601557939548
$40.00

Out of Stock

Add To Favorite

Add to existing list
Select a list

Or create new one:

List name
Can we ship this to you? (US only)
Specifications
Finish:
Anodized
Item Width (Inches):
0.200
Attachment Type:
M-LOK
Color:
Flat Dark Earth
Material:
Aircraft Aluminum
Quantity:
1
Item Length (Inches):
1.265
Item Weight (lbs):
0.038
Restriction
Can we ship this to you? (US only)
Description

Made In The U.S.A.

Products marked with the Stars and Stripes are proudly made in the U.S.A.

Many customers have asked us to show which products are made in America, and we’ve begun working with our vendors to identify them. This information, however, is not available for all items nor does it imply that foreign merchandise is of lesser quality. We will continue to gather this information to assist our customers in making informed buying decisions, and will keep our website current with the latest information.

Guaranteed. Forever.®

We make purchasing and returning products as simple as possible. If you buy a product from Brownells and decide you don’t need it, don’t want it, or just don’t like it, we’ll take it back any time… with a few exceptions

Exceptions include:

  • Firearms
  • Ammunition
  • Modified 80% frames & receivers
  • Gun powder
  • Primers
  • Liquids
  • Limited Quantity/Hazardous items
  • Products that are subject to pending or implemented restrictions due to Federal, State, or Local regulation/legislation

All other products are Guaranteed. Forever.® you can easily identify these products by the Guaranteed. Forever.® Icon.

Guaranteed. Forever.

Guaranteed. Forever.® return policy applies to the product’s original owner along with proof of purchase. Any items returned within 45 days of shipment are entitled to a refund. Any items returned after 45 days of shipment will be issued store credit in the form of a Brownells Gift Card. If a Brownells/Sinclair product was purchased through another retailer as a new product we will require proof of purchase to replace or refund.  (Refund will be issued as store credit in the form of a Brownells gift card.)

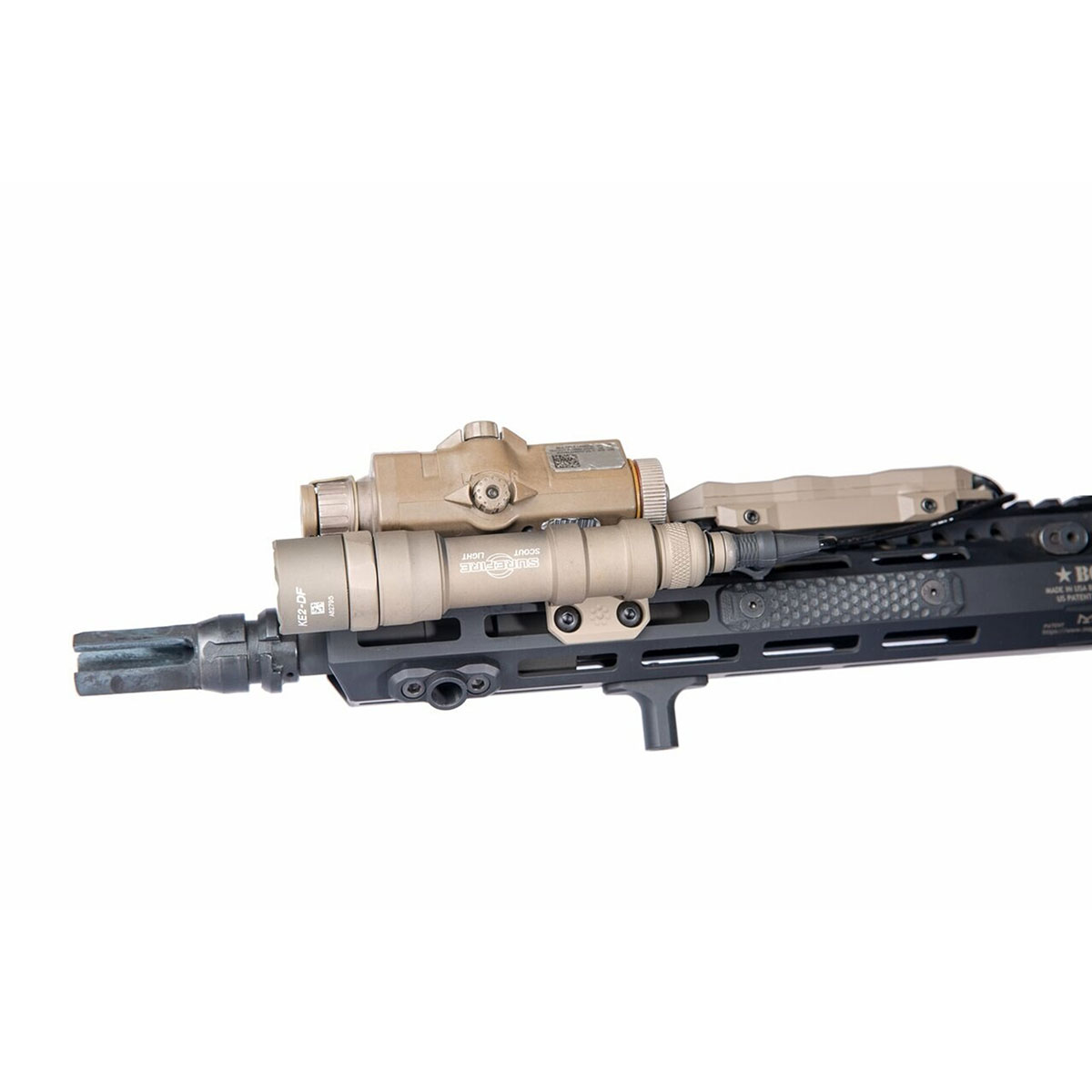

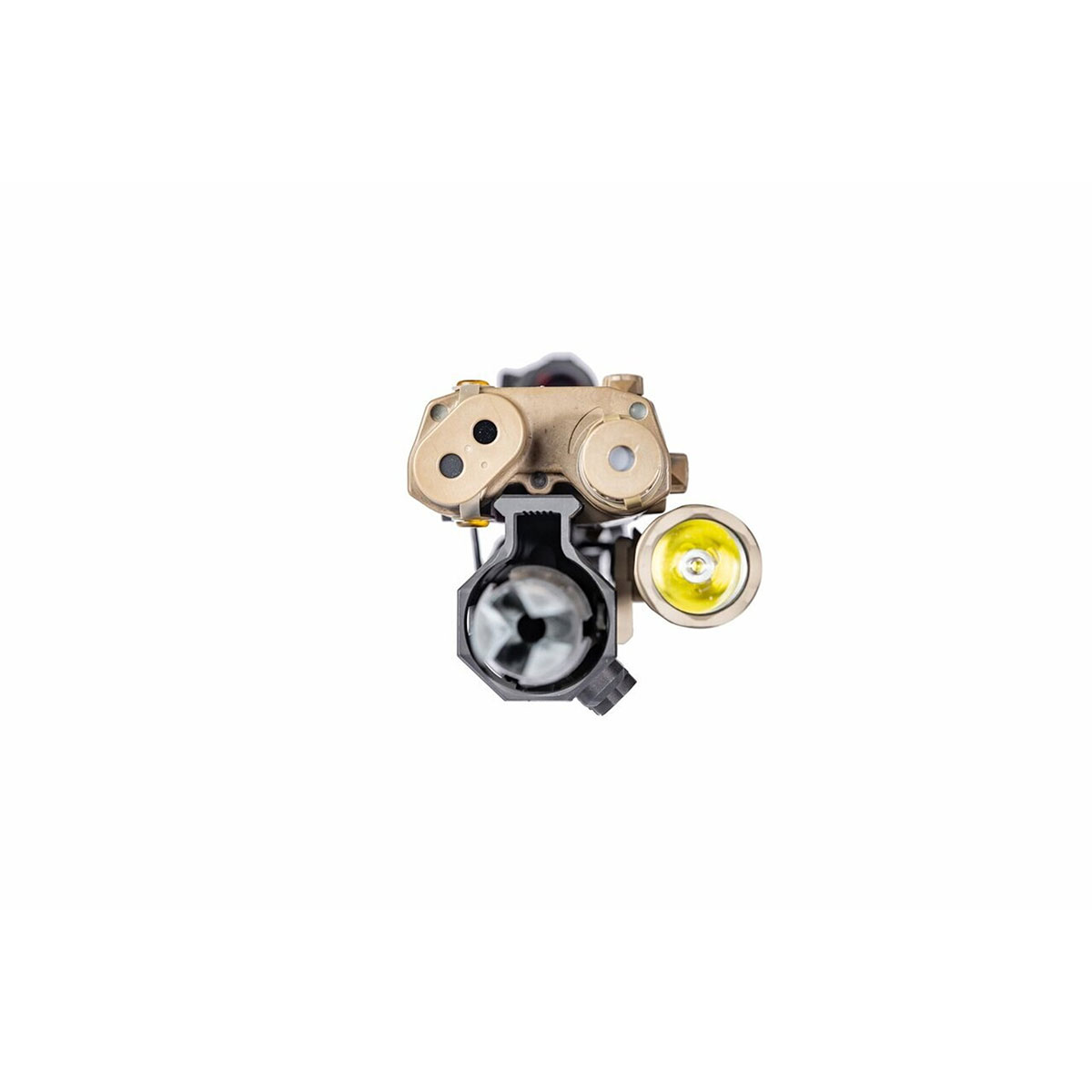

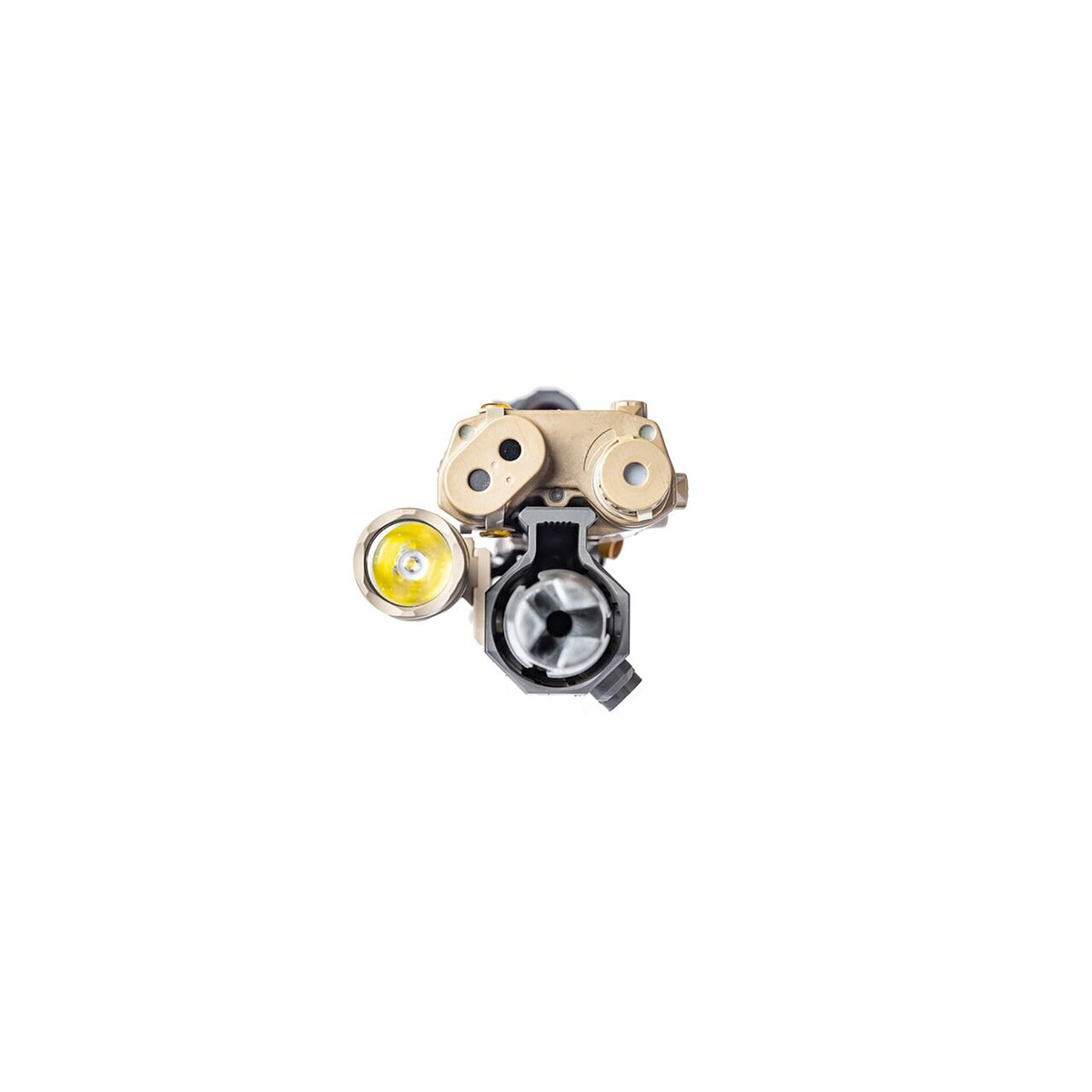

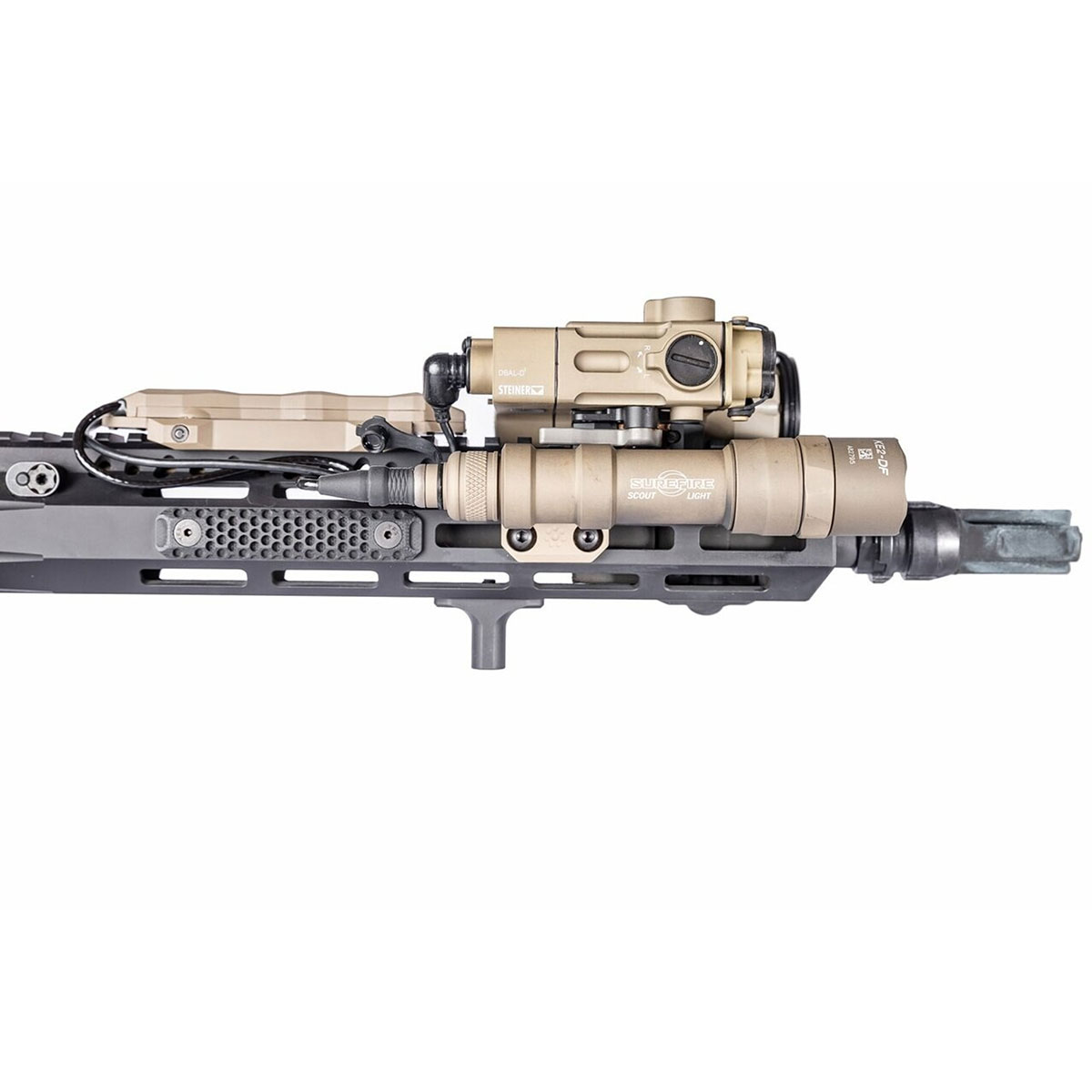

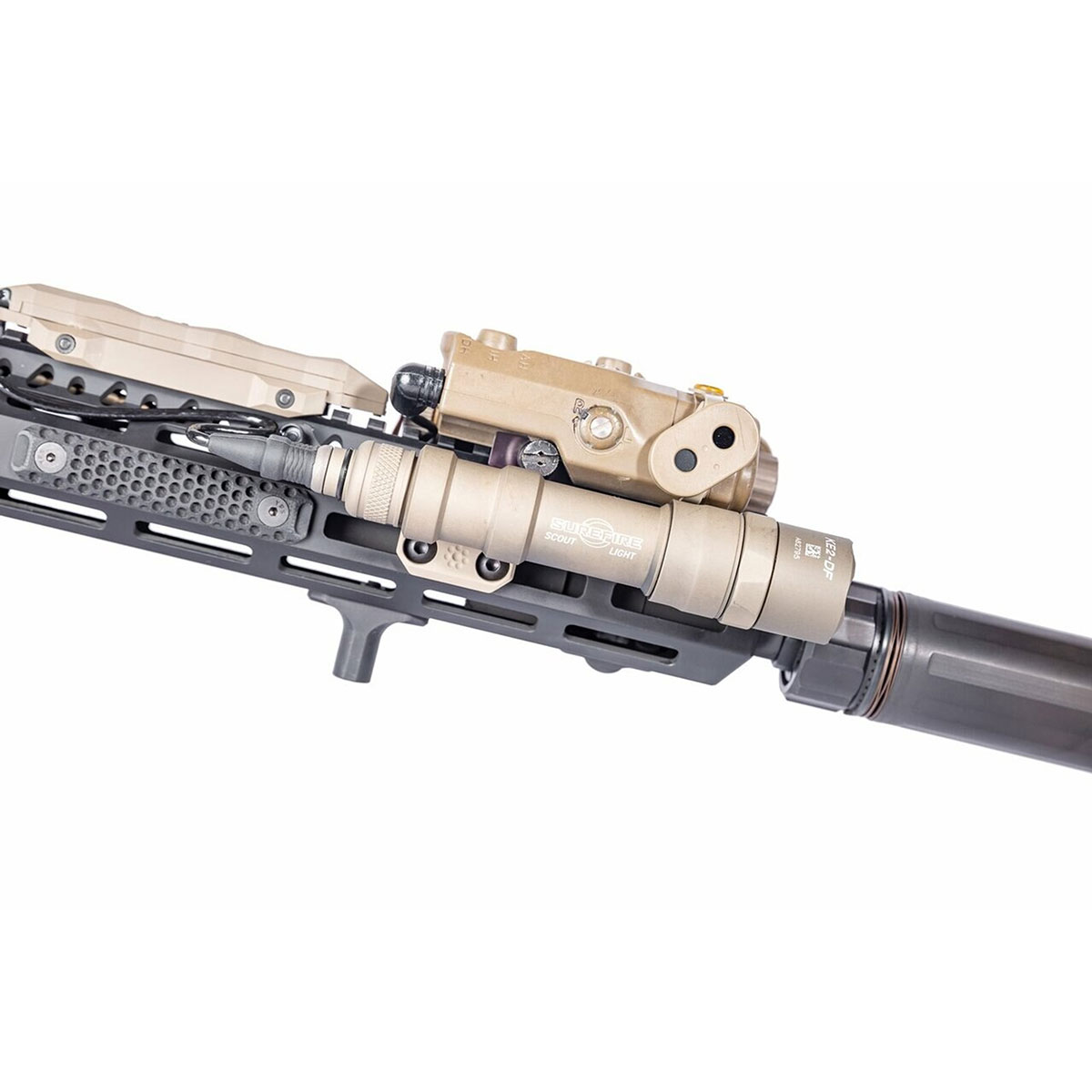

The Arisaka Side Scout Mount (SSM) is designed for use with Surefire Scout Lights, the Modlite PLH and OKW weapon lights, the Arisaka 300, 600 and 18650 Series, the Streamlight Protac Rail Mount lights, and the Olight Odin. It replaces the stock Picatinny rail adapter with a low profile mount for M-Lok handguards, and tucks the light underneath either side of the ATPIAL laser/illuminator series, including the ATPIAL-C, AN/PEQ15, and LA-5/PEQ. It will also allow the light to clear the QD lever on the Steiner DBAL I2, A3, and D2.

Compatible with the Modlite PLH, PLHv2 and OKW, Surefire M300A, M300B, M300C, M300V, M312, M322, M312V, M313V, M322V, M600B, M600C, M600P, M600U, M600V, M600DF, M612, M622, M603V, M612V, M622V, Streamlight Protac Rail Mount 1, 2 and HL-X (non-laser), Olight Odin, CD REIN, and Arisaka 300, 600 and 18650 Series.

The longer base Scout lights like the M620, M951/2 and M961/2 can be used with the Side Scout Mount with the addition of our Offset M620 adapter.

As a bonus, the Side Scout Mount also works nicely on the Sig MPX PCC and MCX Virtus M-Lok handguards.

Part#: SSM-M
Length: 1.265"
Thickness: 0.2"
Weight: 0.6 oz

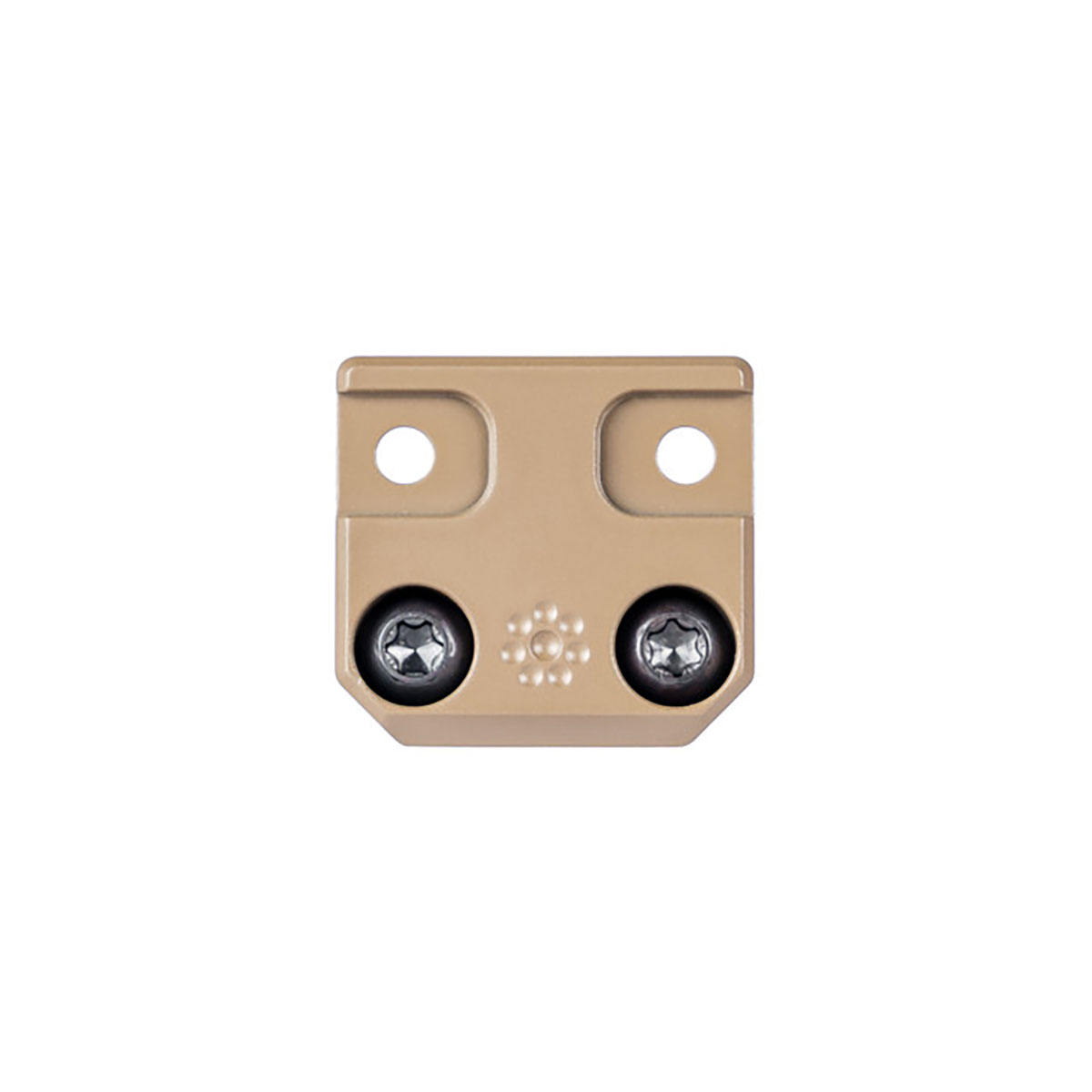

The mount is CNC machined from 6061-T651 aluminum and MIL-A-8625 Type III hard coat anodized. Includes necessary screws to attach light body to mount. Requires an IP20 TorxPlus driver for installation (not included). A T9 Torx driver is required to remove the stock Picatinny mount from Surefire Scout Lights. Recommended torque: 30 inch lbs for M-Lok screws and 20 inch lbs for light body screws with medium strength threadlocker.
Hardware: Two M-Lok nuts, two 10-24x5/16" Torx button head screws, two 8-32x5/16" Torx flat head screws.
Made in the USA.
