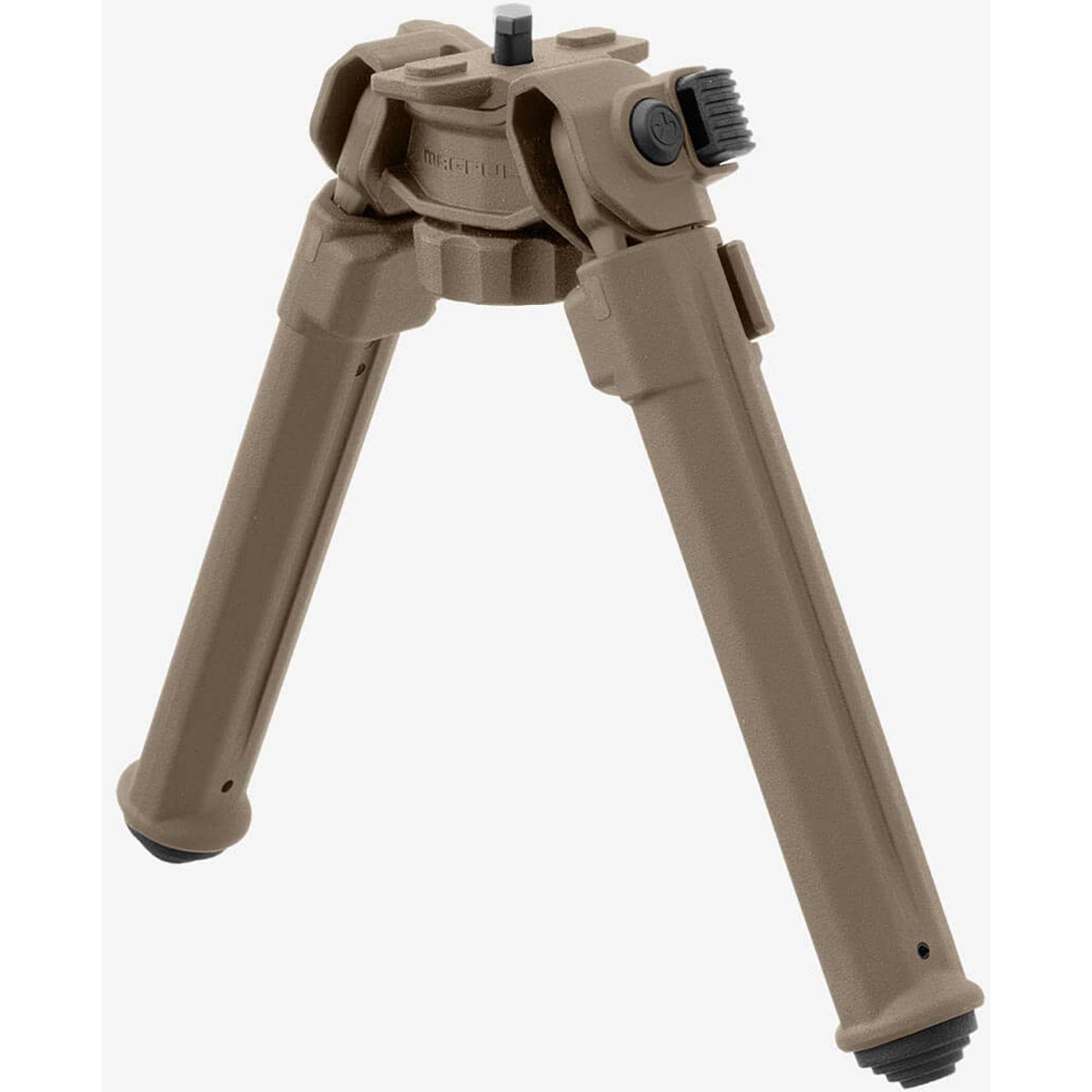

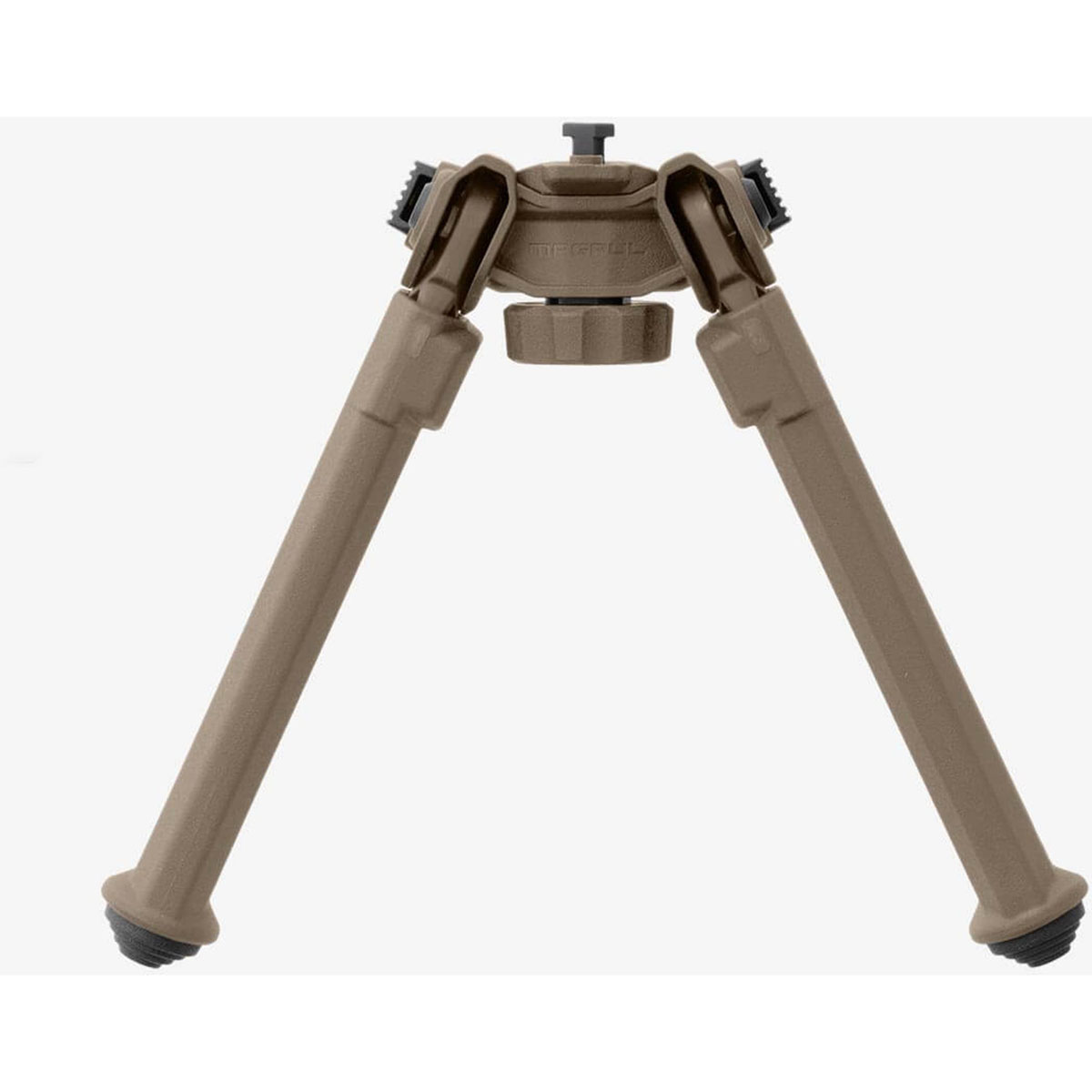

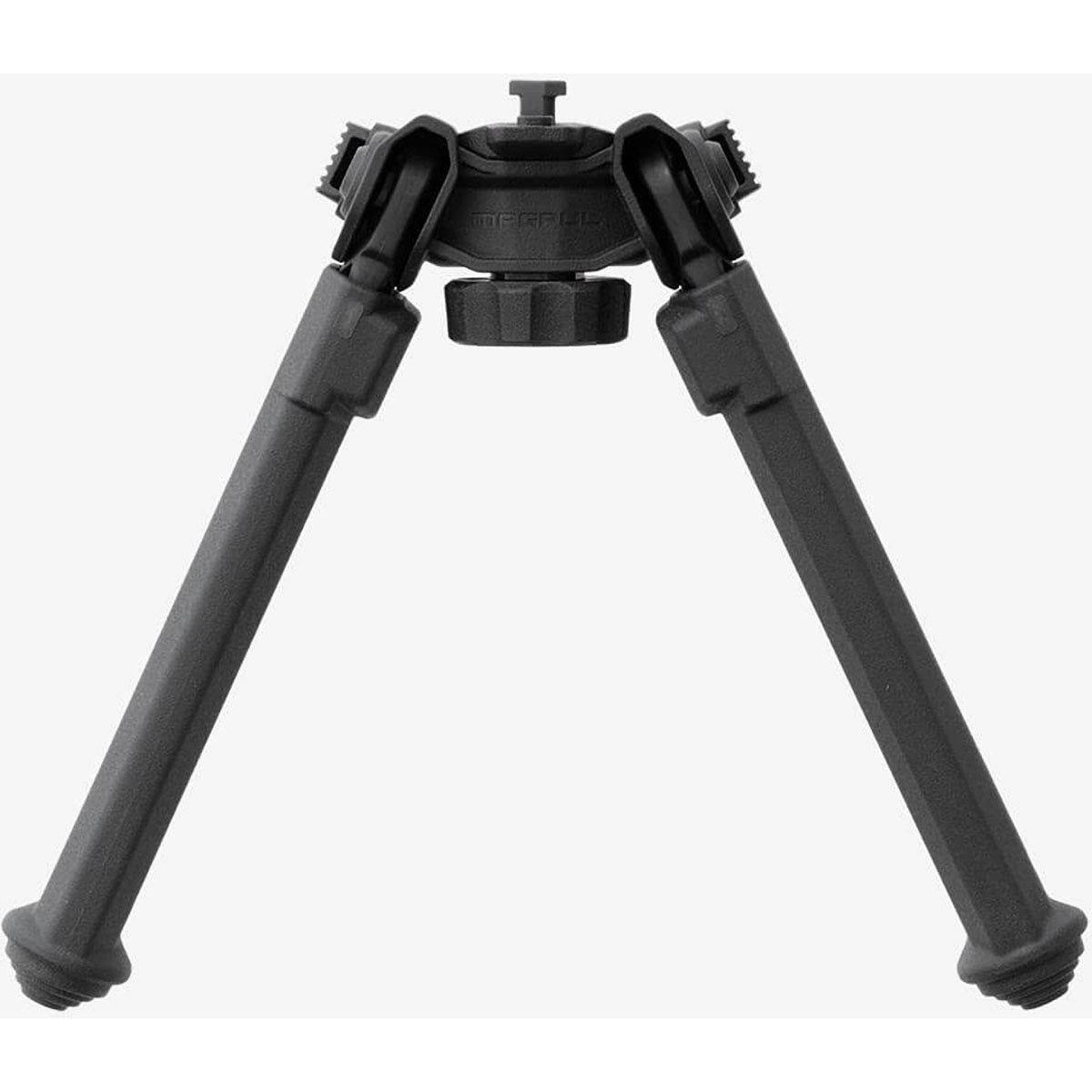

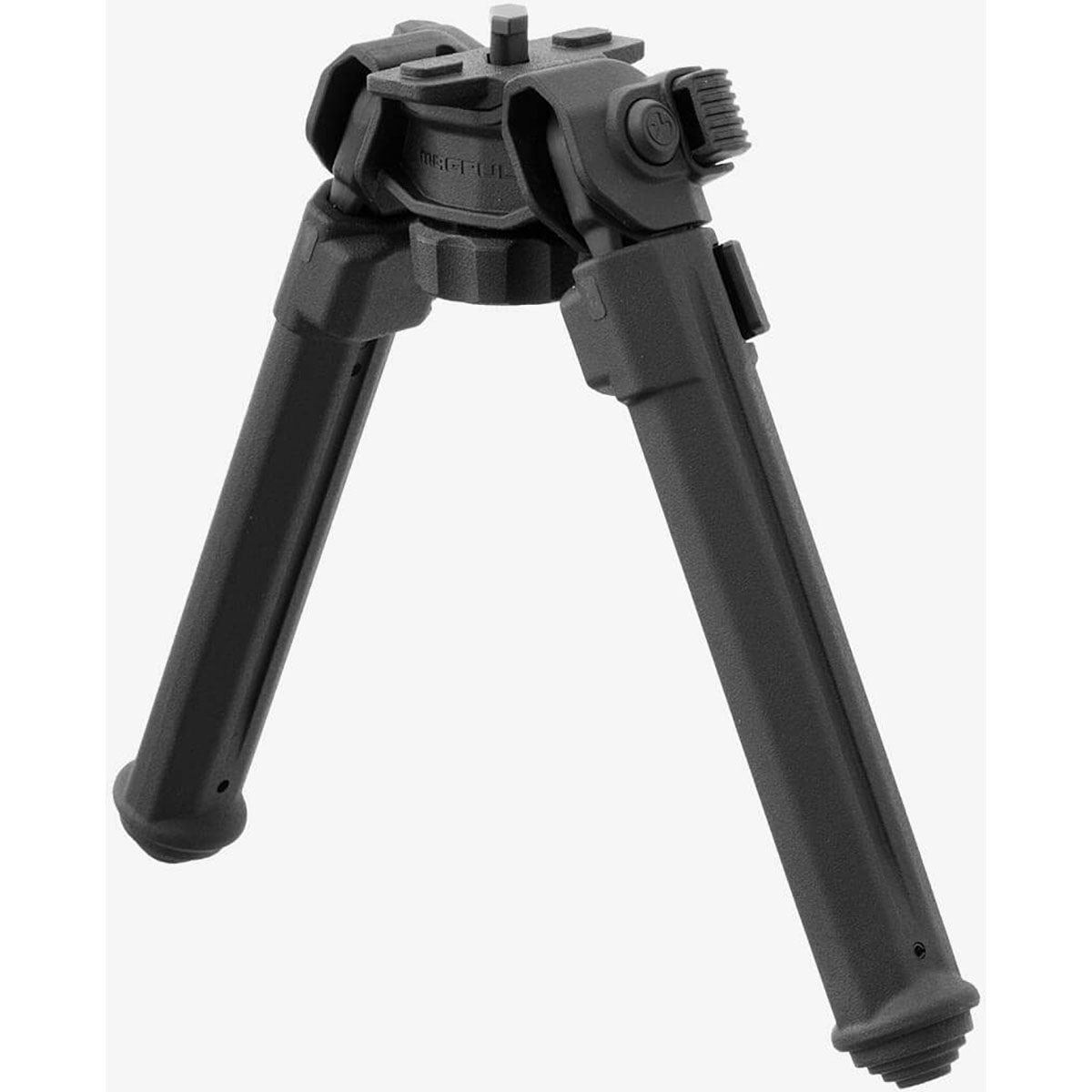

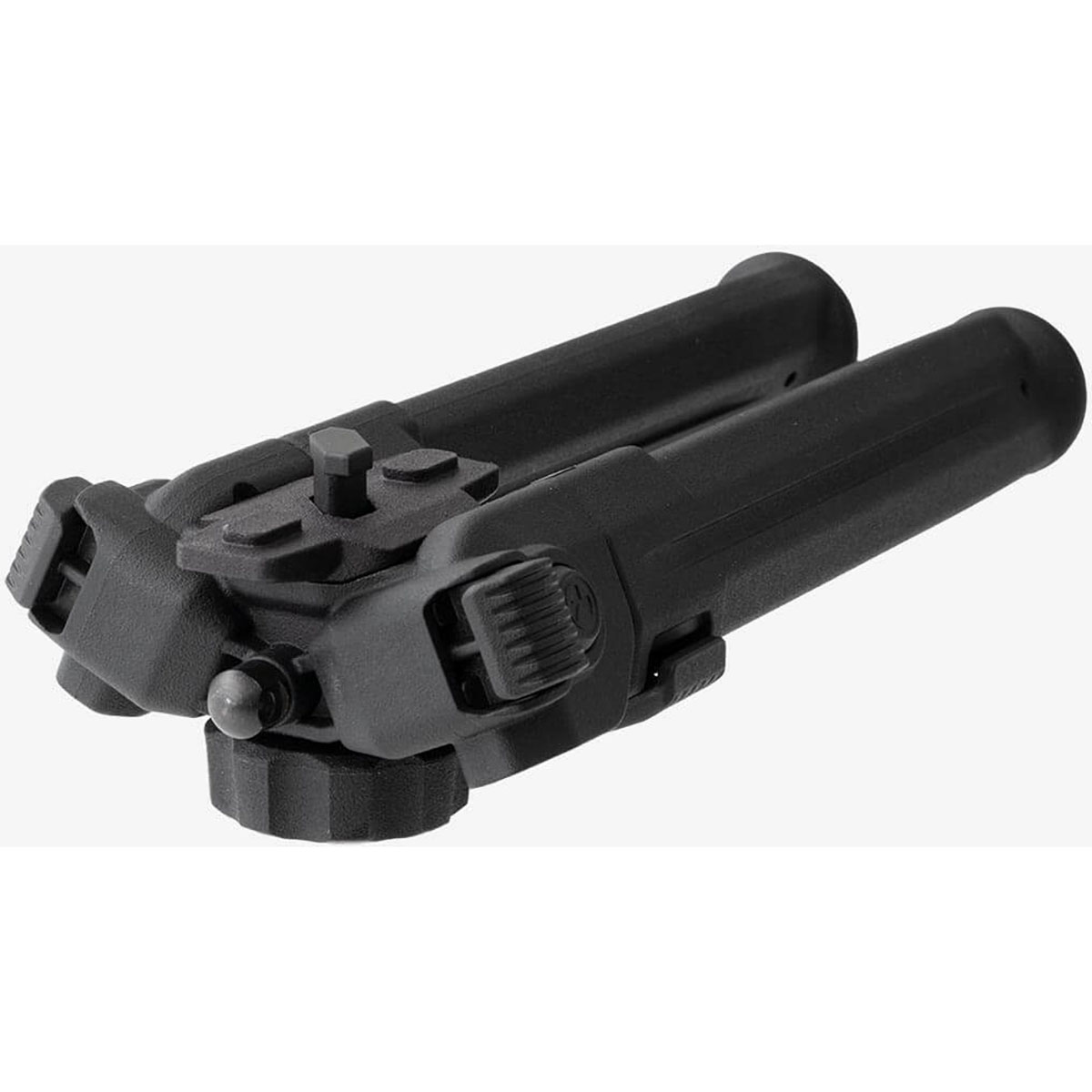

MAGPUL MOE QUICK DETACH BIPOD FOR M-LOK

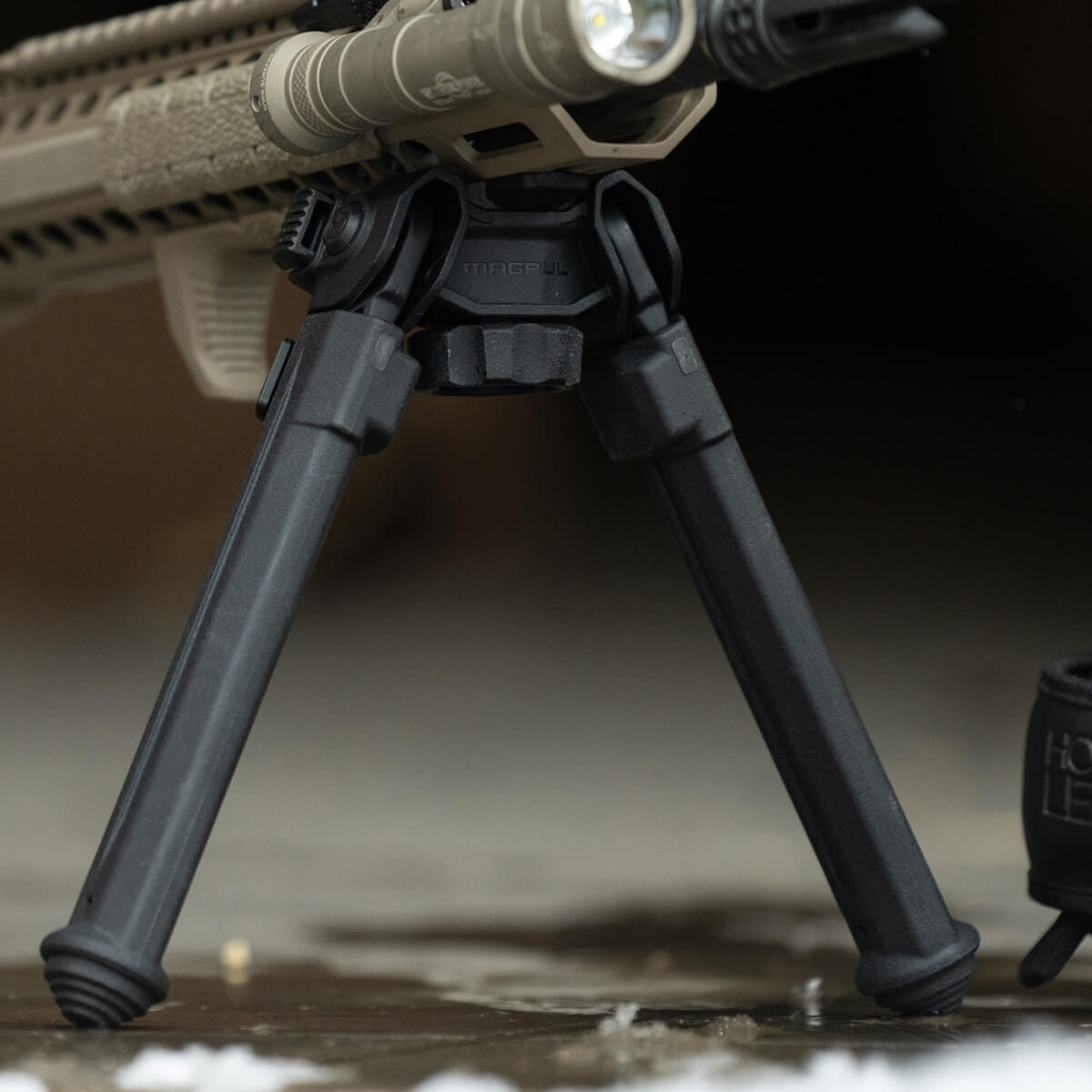

Magpul offered a variety of bipods for quite some time, but none have attached as simply and quickly as the MOE QD Bipod for M-LOK. This new bipod provides shooters a quick-attach and detach function when using guns with an M-LOK hand guard or forend; by speeding up the attachment process via the integral attachment knob, you can get support when firing faster than ever before. To attach the bipod, simply insert the M-LOK stud into the M-LOK slot, rotate the bipod 45° counterclockwise so the stud is perpendicular to the M-LOK slot, and tighten the adjustment knob to securely fasten against the forend. No tools required.
Aside from the quick, simple attachment method, the bipod is almost 40% lighter than some of thier existing bipods. The injection-molded construction won’t deform or break under pressure, and it provides a consistent, stable platform from which to shoot. The bipod plate – made from the same injection-molded material as the bipod itself – provides a solid mounting surface and features two (2) additional M-LOK lugs to promote proper alignment after installation, as well as increased stability and durability during recoil. The bipod is also equipped with a low-profile sling stud on the rear to allow sling attachment for easy carry and transportation of the firearm.

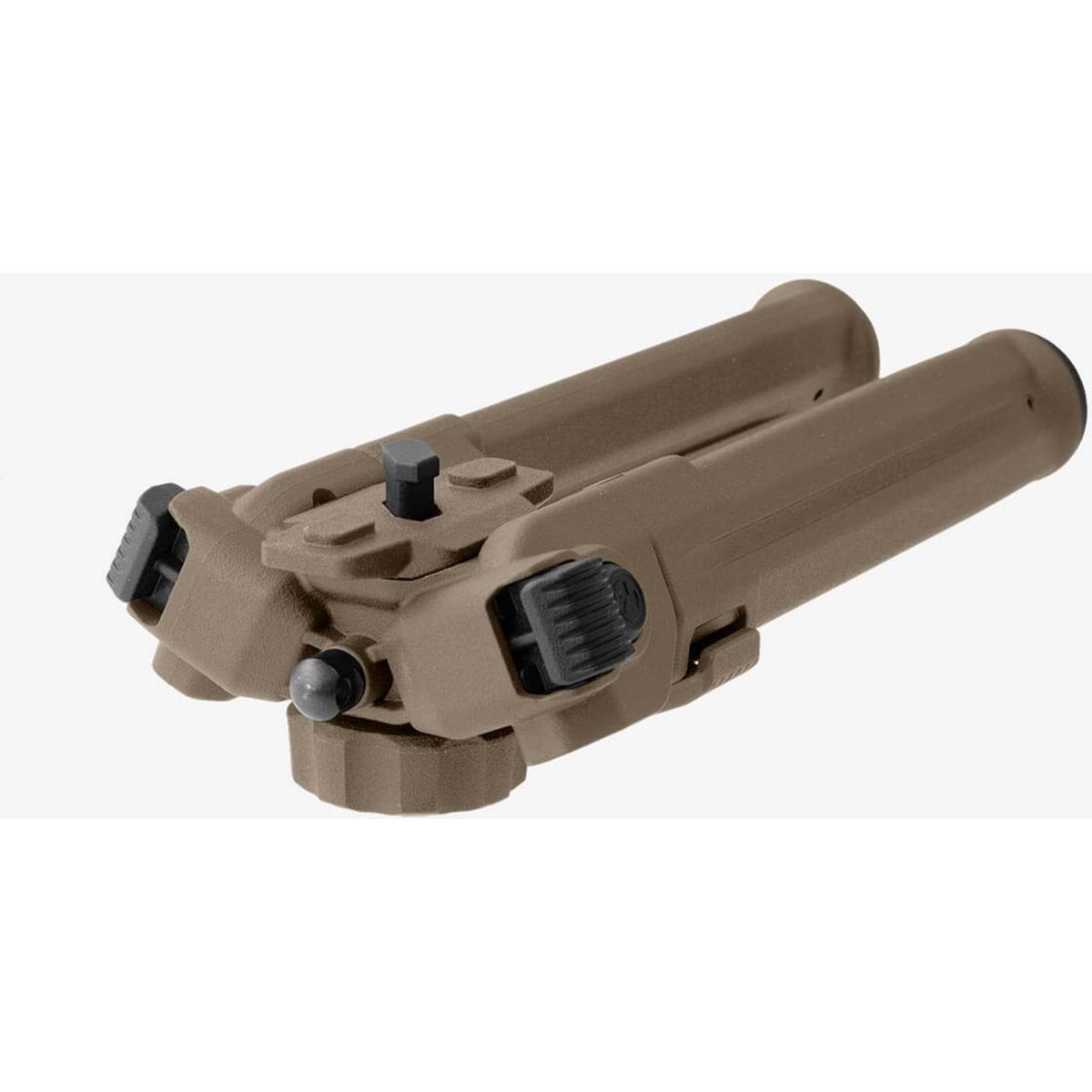

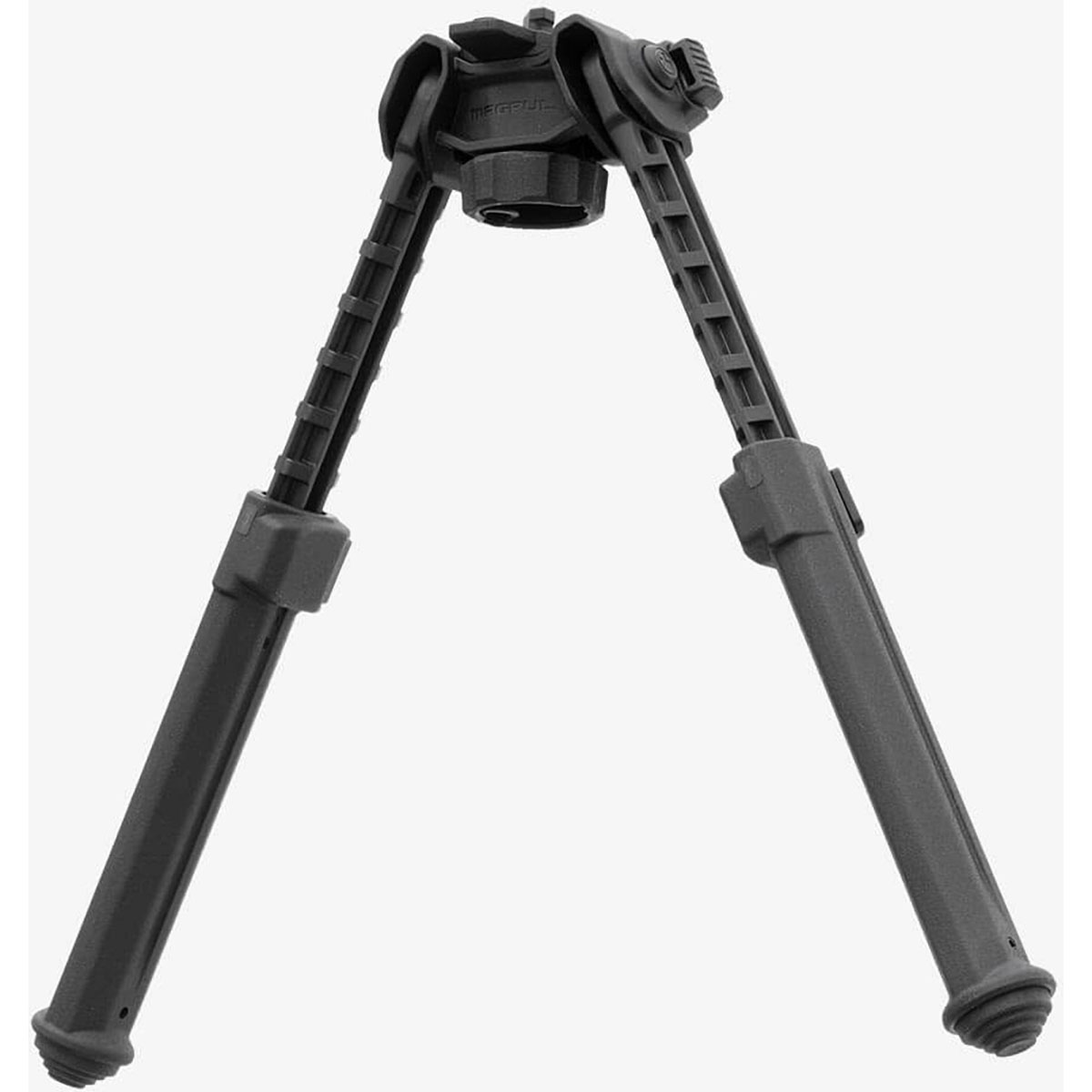

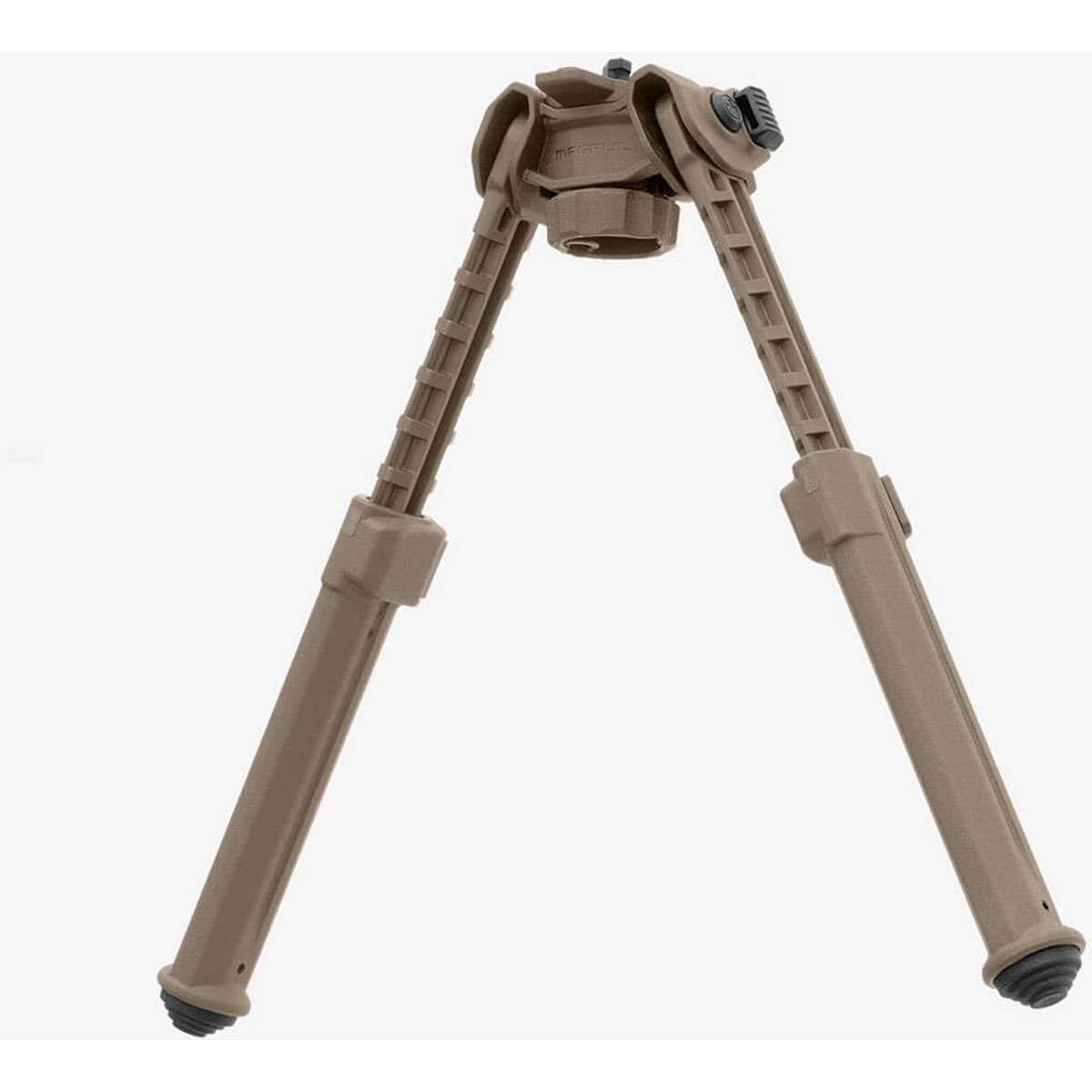

The MOE QD bipod has a low stack height of 1.7” when folded, giving it a streamlined profile when the legs are stowed. When the legs are needed, they deploy and stow with the push of a button, snapping and locking into position. The legs extend from 7ʺ to 10ʺ and are adjusted easily and independently via a button located at the top of each leg. Within this adjustment range, there are seven (7) ½ʺ spaced locking detents to fine tune the bipod’s deployed height. Additionally, the bipod’s soft, stepped, non-slip rubber feet grip a wide array of shooting surfaces; the feet are also easily removed with a roll-pin punch should shooters want to change them to something different (the bipod accepts most Atlas-pattern bipod feet).
FEATURES:
QUICK, SIMPLE INSTALLATION:
- The MOE QD Bipod installs via an adjustment knob
- Minimizes installation requirements since no other hardware is required
COMPACT, LIGHTWEIGHT:
- 40% lighter than some other Magpul bipods
- Stack height of 1.7”; when extended legs measure 7”-10” in 0.5” increments
VERSATILE LEGS AND FEET:
- Soft, stepped, non-slip rubber feet grip a wide array of shooting surfaces; the feet are also easily removed with a roll-pin punch
- Legs accept most Atlas-pattern bipod replaceable feet to best match the needs of your environment
SPECIFICATIONS:
- Attachment: M-LOK Slots
- Materials: Polymer, steel
- Height, max: 10 in.
- Pan and Tilt: No
- Weight: 9 oz.
- Made in the USA.
